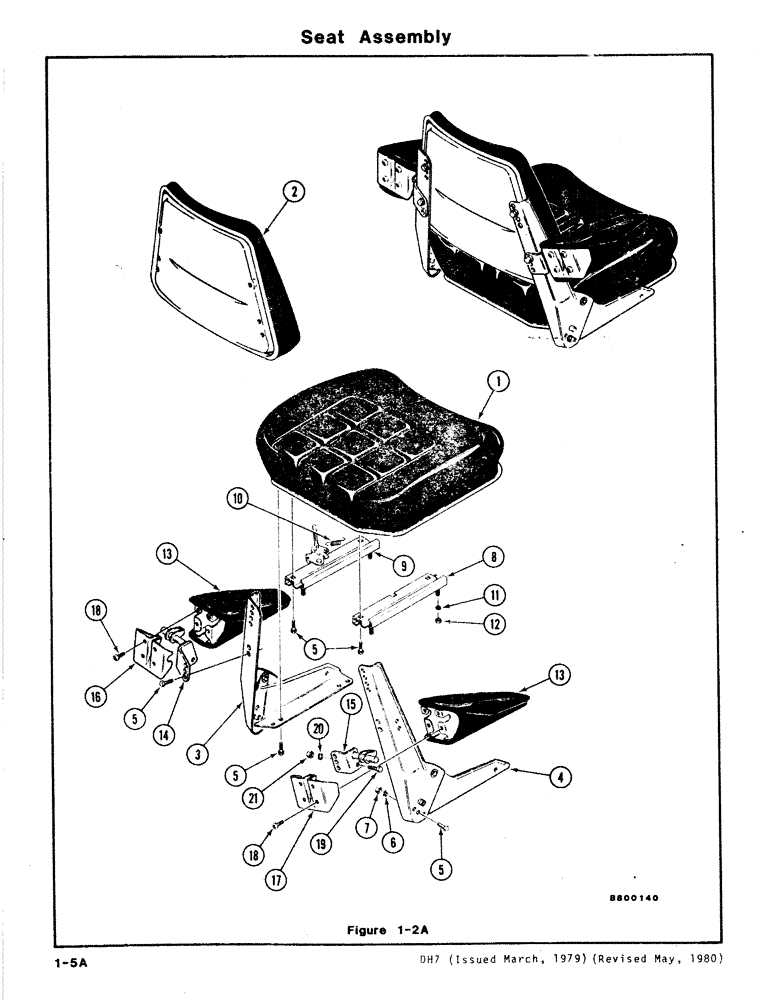

Запчасти Case DH7 (1-05A) - SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

D76157

SEAT

ASSEMBLY - Operator, Includes: Ref. 1 - 12

1шт.

1

D56883

SEAT

CUSHION - Seat

1шт.

2

D56884

BACKREST

CUSHION - Backrest

1шт.

3

D56885

RAIL ASSY.

SUPPORT - Seat, LH

1шт.

4

D56886

RAIL ASSY.

SUPPORT - Seat, RH

1шт.

5

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

14шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

D56887

SEAT

SLIDE - Seat, RH

1шт.

9

D56888

ADJUSTER

SLIDE - Seat, LH Adjustment Side

1шт.

10

D56889

SPRING

- Adjustment Lever

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

12

9635082

NUT,5/16" - 18, Gr 5

4шт.

D56424

ARMREST

KIT - Arm Rest, Includes: Ref. 13 - 21

1шт.

13

D56898

ARMREST

ARM REST - Operator

2шт.

14

D56899

BRACKET

- Mounting, LH

1шт.

15

D56900

BRACKET

- Mounting, RH

1шт.

16

D56901

BRACKET

PLATE - Mounting, LH

1шт.

17

D56902

BRACKET

PLATE - Mounting, RH

1шт.

18

187-1004

SELF-TAP SCREW,Cross Flat Hd, #8 x 3/8"

SCREW - Self-tapping (#8 x 3/8) (Phillips head)

8шт.

19

113-143

BOLT,5/16" x 5/8"

NC HH (5/16 x 5/8)

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

2шт.
