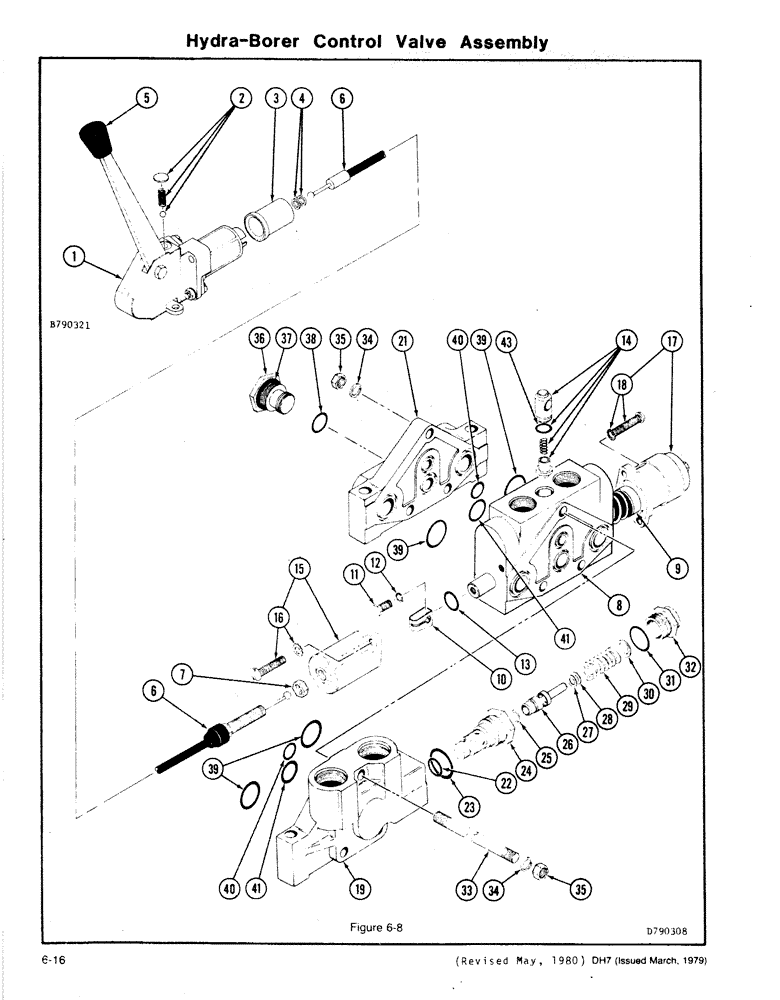

Запчасти Case DH7 (6-16) - HYDRA-BORER CONTROL VALVE ASSEMBLY (89) - TOOLS

H652255

VALVE

ASSEMBLY - Hydra-Borer Control, Includes: Ref. 1 - 36

1шт.

1

H653139

ACTUATOR

ASSEMBLY - Control Valve, Includes: Ref. 2 - 5

1шт.

2

H655795

DETENT KIT - Actuator (includes ball, spring and plug)

1шт.

3

H398826

CAP - End

1шт.

4

H407692

SPACER

2шт.

5

H398867

GRIP

KNOB - Control Handle

1шт.

6

H650101

CABLE

ASSEMBLY - Control, Includes: Ref. 7

1шт.

7

H407718

NUT - Jam

1шт.

H655837

VALVE

SECTION ASSEMBLY - Spool, Includes: Ref. 8 - 18

1шт.

8

H653097

SECTION and SPOOL ASSEMBLY Another Assy. used (NOT A SUB) Part H655993

1шт.

9

H653105

ASSEMBLY

FAIL SAFE ASSEMBLY

1шт.

10

H398719

CONNECTOR, ELEC

CONNECTOR - Cable

1шт.

11

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

H644849

SEAL

KIT - Spool

1шт.

This ref. is also part of H655423 Valve Seal Kit.

1шт.

14

H644880

CHECK VALVE

KIT - Load Check (includes poppet, spring o-ring and body)

1шт.

15

H655787

CAP

KIT - End, Includes: Ref. 16

1шт.

16

H400648

SCREW

ASSEMBLY

2шт.

17

H655779

KIT

CAP KIT - Fail Safe End, Includes: Ref. 18

1шт.

18

H400648

SCREW

ASSEMBLY

2шт.

19

H398636

COVER

- Inlet

1шт.

21

H398792

COVER - Outlet

1шт.

H653071

VALVE, PRESSURE RELI

VALVE ASSEMBLY - Main Relief, Includes: Ref. 22 - 32

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING

1шт.

These refs. are included in H644864 Main Relief Valve Seal Kit

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING

1шт.

These refs. are included in H644864 Main Relief Valve Seal Kit

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - Relief Valve

1шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - Poppet

1шт.

26

NSS

NOT SOLD SEPARAT

POPPET

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM (.003)

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM (.020)

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING (1500 to 4000 psi) (red)

1шт.

30

NSS

NOT SOLD SEPARAT

SHIM

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING

1шт.

These refs. are included in H644864 Main Relief Valve Seal Kit

1шт.

32

NSS

NOT SOLD SEPARAT

CAP - Valve (pressure stamped on end)

1шт.

33

H398693

TIE-ROD

ROD - Tie

3шт.

34

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

6шт.

35

25-114

NUT,1/4"-28, G5

NF HH (3/8)

6шт.

36

H653121

ADAPTER

ASSEMBLY - Power Beyond

1шт.

H655423

KIT

SEAL KIT - Valve, Includes: Ref. 37 - 43

1шт.

H655761

KIT

SEAL KIT - Power Beyond, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING

1шт.

H644914

KIT

SEAL KIT - Intersection, Includes: Ref. 39 - 41

2шт.

39

NSS

NOT SOLD SEPARAT

O-RING

2шт.

40

NSS

NOT SOLD SEPARAT

O-RING

1шт.

41

NSS

NOT SOLD SEPARAT

O-RING

1шт.

H644864

SEAL KIT

- Main Relief Valve

1шт.

43

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- Check Valve

1шт.

This ref. is also part of H644880 Load Check Kit.

1шт.
