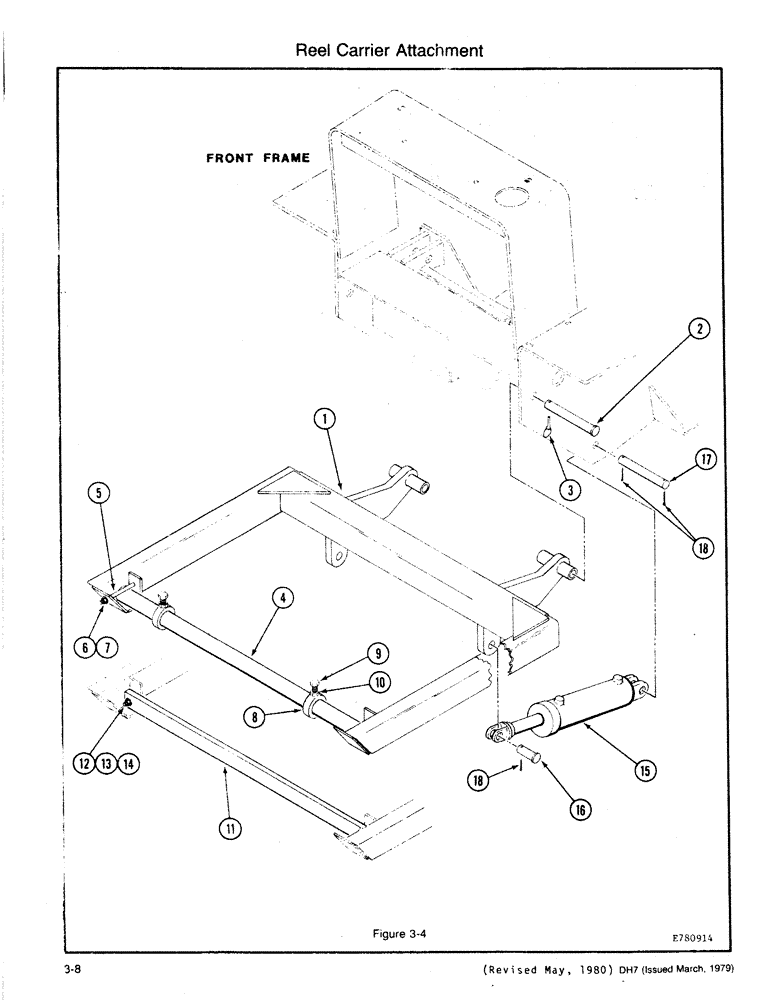

Запчасти Case DH7 (3-08) - REEL CARRIER ATTACHMENT (89) - TOOLS

1

H642462

REEL CARRIER, Includes: Ref. 2 and 3

1шт.

2

H363127

PIN - Clevis (1 x 7-3/4)

2шт.

3

A30338

PIN

- Klik

2шт.

4

H342501

SPINDLE

- Reel Carrier, Includes: Ref. 5 - 7

1шт.

5

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

6

195-525

WASHER,3/8", SAE

- Flat (3/8)

2шт.

7

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

2шт.

8

H342519

COLLAR

- Spindle, Includes: Ref. 9 and 10

2шт.

9

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

10

425-1410

JAM NUT,Jam, 5/8"-11, G5

- NC Hex Jam (5/8)

2шт.

11

H346981

BAR

- Weight (Used when weight is needed without reel), Includes: Ref. 12 - 14

1шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

13

195-525

WASHER,3/8", SAE

- Flat (3/8)

2шт.

14

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

2шт.

15

H565655

CYLINDER BLOCK

CYLINDER ASSEMBLY - Reel Carrier Lift (See Figure 3-34), Includes: Ref. 16 - 18

2шт.

16

H65011

AXLE PIN,25.3mm OD x 75.41mm L

PIN - Clevis (1 x 2-5/8)

2шт.

17

H363127

PIN - Headless (1 x 7-3/4)

2шт.

18

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.
