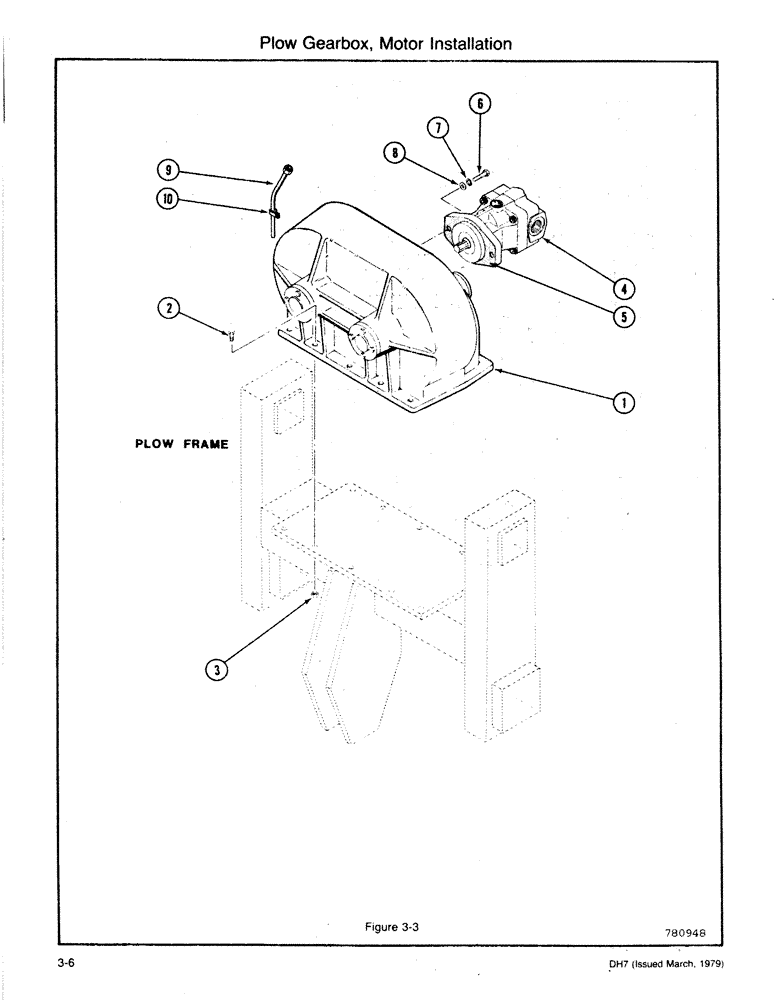

Запчасти Case DH7 (3-06) - PLOW GEARBOX, MOTOR INSTALLATION (89) - TOOLS

1

H563619

BOX

GEARBOX Assembly - Plow (See Figure 3-28), Includes: Ref. 2 and 3

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

10шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

10шт.

4

H624759

MOTOR, ELECTRIC

MOTOR Assembly - Plow (See Figure 3-32)

1шт.

5

H44727

GASKET

- Motor, Includes: Ref. 6 - 8

1шт.

Order 345-70 Sealer in Place of Gasket

1шт.

6

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.

9

H546275

TUBE,0.25" OD x 18" L

- Relief

1шт.

10

H151753

CLAMP

- Tube

1шт.
