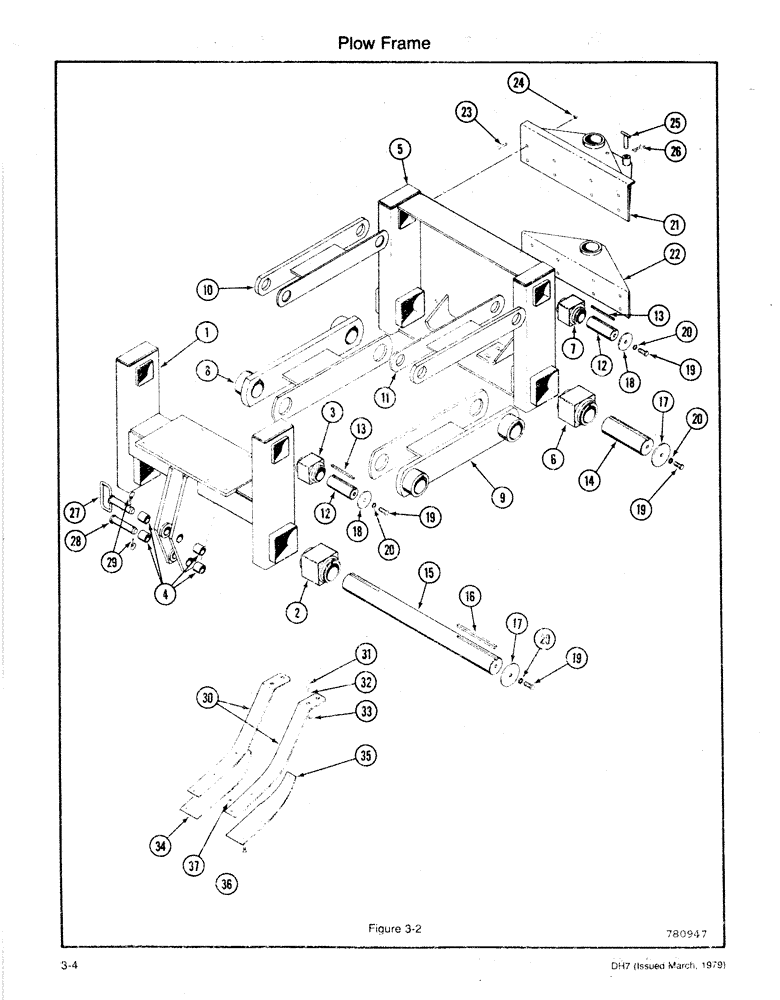

Запчасти Case DH7 (3-04) - PLOW FRAME (89) - TOOLS

1

H588319

FRAME ASSY

FRAME Assembly (Includes Bushings), Includes: Ref. 2 - 4

1шт.

2

H230862

SHOCK ABSORBER

BUSHING - Rubber

2шт.

3

H235069

SEAL

BUSHING - Rubber

2шт.

4

H131102

BUSHING

4шт.

5

H634634

FRAME Assembly (Includes Bushings), Includes: Ref. 6 and 7

1шт.

Ref. 5 parallel H579052

1шт.

6

H230862

SHOCK ABSORBER

BUSHING - Rubber

2шт.

7

H235069

SEAL

BUSHING - Rubber

2шт.

8

H634659

LINK

- Lower Left

1шт.

9

H634667

LINK

- Lower Right

1шт.

10

H578997

LINK ASSY.

LINK - Upper Left

1шт.

11

H579003

LINK ASSY.

LINK - Upper Right

1шт.

12

H195222

SHAFT

4шт.

13

H237461

KEY

- Square (1/4 x 4-11/16)

4шт.

14

H230540

SHAFT

2шт.

15

H240382

SHAFT - Long

1шт.

16

H230508

KEY - Square (3/8 x 8-11/16)

4шт.

17

H230516

WASHER

- Retainer

6шт.

18

H196626

WASHER

- Retainer

8шт.

19

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

14шт.

20

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

21

H578880

PIVOT

- Upper

1шт.

22

H579128

PIVOT - Lower, Includes: Ref. 23 and 24

1шт.

23

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

16шт.

24

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

16шт.

25

H565259

PIN

- Transport Lock

1шт.

26

H32292

PIN

- Hair

1шт.

27

H531830

AXLE PIN

PIN - Blade Mounting

1шт.

28

H79293

AXLE PIN,28.5mm OD x 128.59mm L

PIN - Clevis (1 1/8 x 4-7/8)

1шт.

29

A30338

PIN

- Klik

2шт.

30

H142927

VALVE SPRING

SPRING - Shoe, Includes: Ref. 31 - 33

2шт.

31

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

32

195-541

WASHER,5/8", SAE

- Flat (5/8)

4шт.

33

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

34

H149666

SHOE (ASSY)

SHOE - RH

1шт.

35

H149674

SHOE (ASSY)

SHOE - LH, Includes: Ref. 36 and 37

1шт.

36

164-152

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 1"

SCREW - NF Countersink Head (3/8 x 1)

6шт.

37

131-1326

JAM NUT,Jam, 3/8"-24

NUT - NF Hex C/L (3/8)

6шт.
