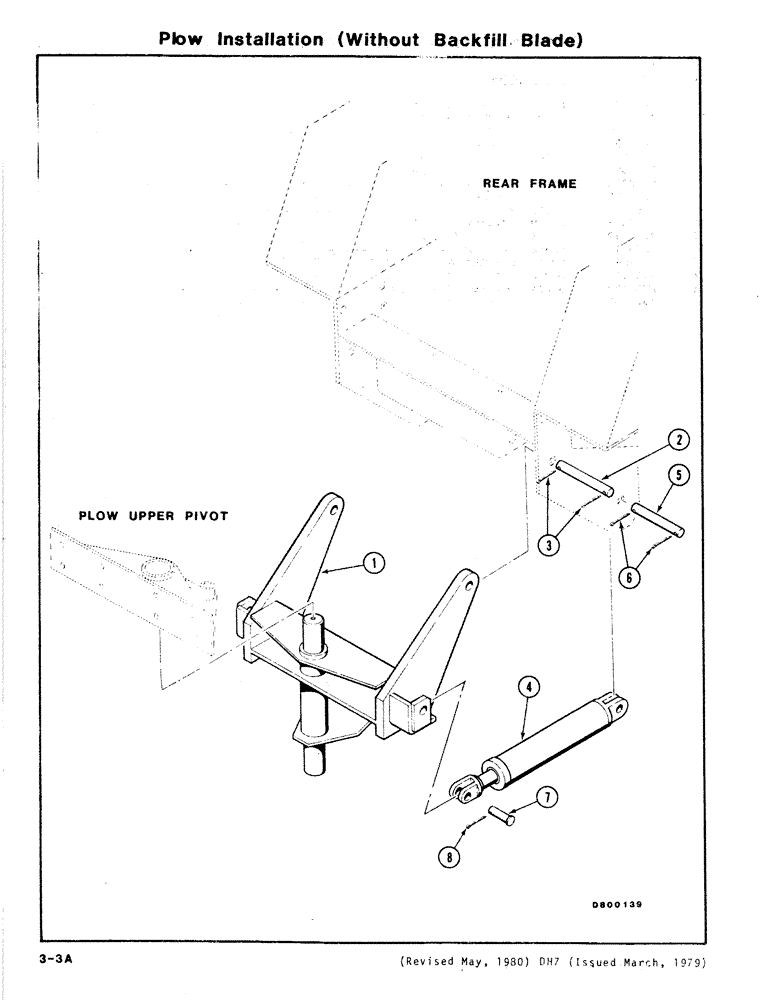

Запчасти Case DH7 (3-03A) - PLOW INSTALLATION (WITHOUT BACKFILL BLADE) (89) - TOOLS

1

H639914

FRAME - Trunnion, Includes: Ref. 2 and 3

1шт.

2

H363127

PIN - Mounting (1 x 7-3/4)

2шт.

3

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

4

H565655

CYLINDER BLOCK

CYLINDER ASSEMBLY - Plow Lift (See Figure 3-34), Includes: Ref. 5 - 8

2шт.

5

H363127

PIN - Mounting (1 x 7-3/4)

2шт.

6

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

7

H65011

AXLE PIN,25.3mm OD x 75.41mm L

PIN - Clevis (1 x 2 5/8)

2шт.

8

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.
