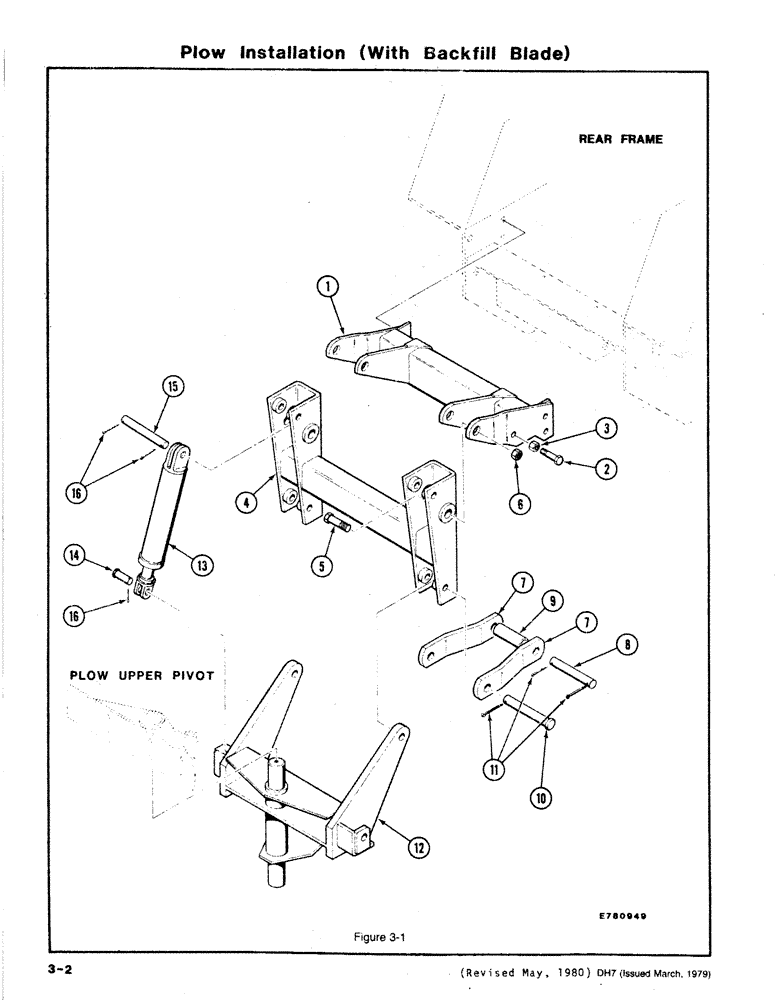

Запчасти Case DH7 (3-02) - PLOW INSTALLATION (WITH BACKFILL BLADE) (89) - TOOLS

1

H643445

BRACKET - Plow Mounting, Includes: Ref. 2 and 3

1шт.

2

113-810

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

NC HH (7/8 x 2-1/2)

6шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT NC HH C/L (7/8)

6шт.

4

H642587

FRAME - Mounting, Includes: Ref. 5 and 6

1шт.

5

13-2048

BOLT NC HH (1-1/4 x 3) Hex, 1 1/4-7 x 3", G5, Full Thd

4шт.

6

131-382

LOCK NUT,1 1/4"-7, GA

NUT NC HH C/L (1-1/4)

4шт.

7

H378372

LINK, Includes: Ref. 8 - 11

4шт.

8

H363127

PIN - Mounting (1 x 7-3/4)

2шт.

9

H392399

SLEEVE

2шт.

10

H262097

PIN - Clevis (1 x 8)

2шт.

11

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

6шт.

12

H639914

FRAME - Trunnion

1шт.

13

H565655

CYLINDER BLOCK

CYLINDER ASSEMBLY - Plow Lift (See Figure 3-34), Includes: Ref. 14 - 16

2шт.

14

H151134

PIN - Clevis (1 x 3-5/8)

2шт.

15

H363127

PIN - Clevis (1 x 7-3/4)

2шт.

16

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

6шт.
