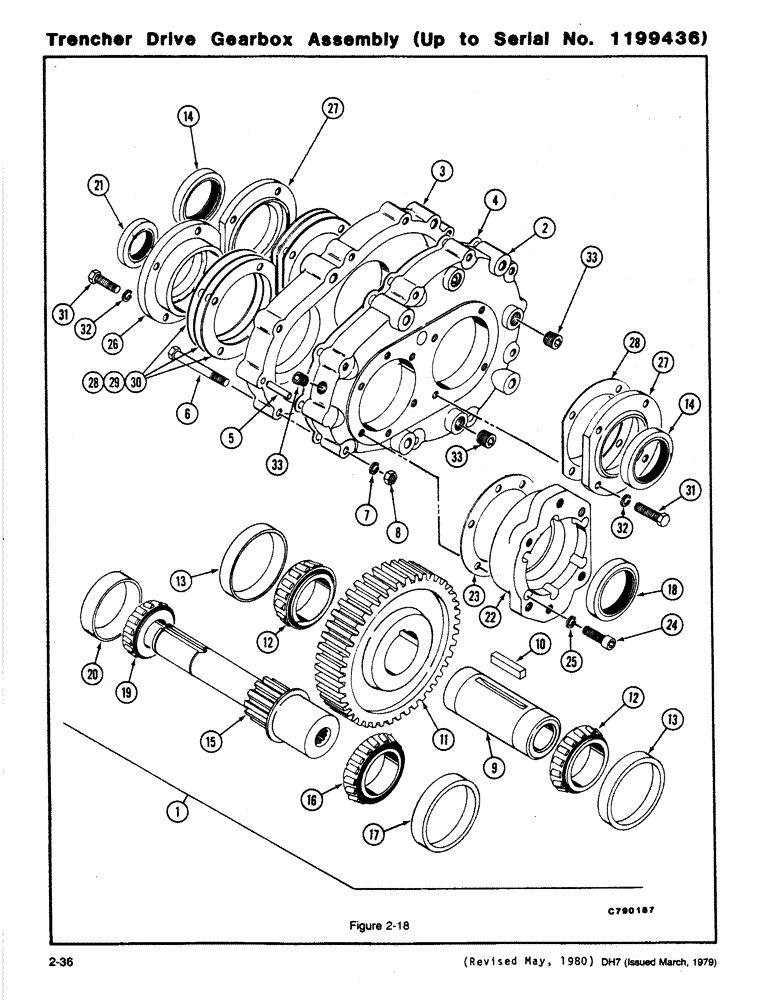

Запчасти Case DH7 (2-36) - TRENCHER DRIVE GEARBOX ASSEMBLY (UP TO SERIAL NO. 1199436) (89) - TOOLS

1

H641258

GEARBOX ASSY

GEARBOX ASSEMBLY - Trencher Drive, Includes: Ref. 2 - 34

1шт.

2

H373092

HOUSING HALF - Input side

1шт.

3

H373084

HOUSING HALF - Output side

1шт.

4

H384065

GASKET

1шт.

5

H373175

PIN - Dowel (5/16 x 1)

2шт.

6

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

8шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

9

H373142

SHAFT

- Lo-speed

1шт.

10

H373209

KEY

- (3/8 sq x 1-7/8)

1шт.

11

H373134

GEAR WHEEL

GEAR (73 teeth)

1шт.

When replacing either of these refs., both must be replaced. Order 1 each H403568 Pinion Gear and H403576 Gear. The H403568 Pinion Gear and H403576 Gear may be replaced seperately.

1шт.

12

A150146

ROLLER BEARING,57.163 mm ID x 22.022 mm

BEARING CONE

2шт.

13

A50179

BEARING CUP

2шт.

14

H362830

SEAL ASSY.

SEAL

2шт.

15

H384057

GEAR

- Hi-speed (17 teeth)

1шт.

When replacing either of these refs., both must be replaced. Order 1 each H403568 Pinion Gear and H403576 Gear. The H403568 Pinion Gear and H403576 Gear may be replaced seperately.

1шт.

16

H758151

BEARING

CONE

1шт.

17

A50179

BEARING CUP

1шт.

18

H758177

SEAL

1шт.

19

H758169

ROLLER BEARING

BEARING CONE

1шт.

20

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

BEARING CUP

1шт.

21

H758466

SEAL

1шт.

22

H373100

FLANGE - Pump

1шт.

23

H373183

BLOCK

SHIM (.005) (6 hole)

1шт.

24

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW Soc Hd (3/8 x 1) (Gr 5

6шт.

25

192-401

LOCK WASHER,3/8"

3/8"

6шт.

26

H383885

COVER

1шт.

27

H362582

COVER

2шт.

28

H362681

SHIM,.005" Thk

1шт.

29

H362699

SHIM,.007" Thk

1шт.

30

H362707

BLOCK

SHIM (.020)

1шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

33

221-1849

PLUG

- Pipe (3/8)

10шт.

34

D57822

BREATHER

(not Shown)

1шт.
