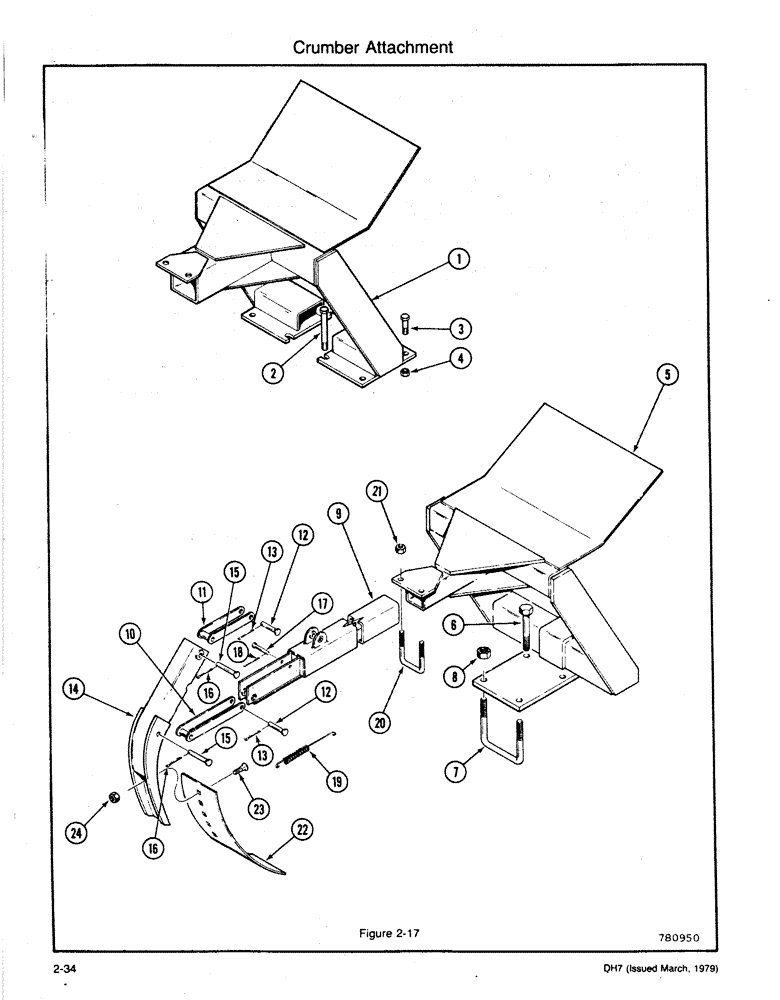

Запчасти Case DH7 (2-34) - CRUMBER ATTACHMENT (89) - TOOLS

1

H614388

BRACKET - Crumber Attach - Channel Boom, Includes: Ref. 2 - 4

1шт.

2

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

4шт.

3

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

4

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

8шт.

5

H570143

BRACKET - Crumber Attach - Sprocket Boom, Includes: Ref. 6 - 8

1шт.

6

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

2шт.

7

H220913

U-BOLT

1шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

H580605

ARM

BOOM Assembly - Crumber (45" & 58"), Includes: Ref. 9 - 21

1шт.

H580613

BOOM Assembly - Crumber (73" & 86"), Includes: Ref. 9 - 21

1шт.

9

H570358

BOOM

- (45" & 58")

1шт.

9

H570564

BOOM - (73" & 86")

1шт.

10

H532440

DRAG LINK

LINK - Long

1шт.

11

H536664

DRAG LINK

LINK - Short, Includes: Ref. 12 and 13

1шт.

12

H54320

AXLE PIN,19.05mm OD x 79.38mm L

PIN -, Serial Range: Links-Boom

2шт.

13

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

14

H536656

BRACKET

- Blade, Includes: Ref. 15 and 16

1шт.

15

H118109

AXLE PIN,19.05mm OD x 92.08mm L

PIN -, Serial Range: Bracket-Links

2шт.

16

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

17

H54395

AXLE PIN,9.47mm OD x 60.33mm L

PIN

1шт.

18

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

19

H128280

VALVE SPRING

SPRING

1шт.

20

H120253

U-BOLT

1шт.

21

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

2шт.

22

H127480

BLADE

- Crumber (6"), Includes: Ref. 23

1шт.

22

H60087

BLADE

- Crumber (8"), Includes: Ref. 23

1шт.

22

H60103

BLADE

- Crumber (10"), Includes: Ref. 23

1шт.

22

H60129

BLADE

- Crumber (12"), Includes: Ref. 23

1шт.

23

111-520

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

BOLT - NC Carriage (1/2 x 1-1/4)

2шт.

24

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

2шт.
