(2-32) - DIGGING TEETH - 110,000 LB. CHAINLINE

Запчасти Case DH7 (2-32) - DIGGING TEETH - 110,000 LB. CHAINLINE (89) - TOOLS

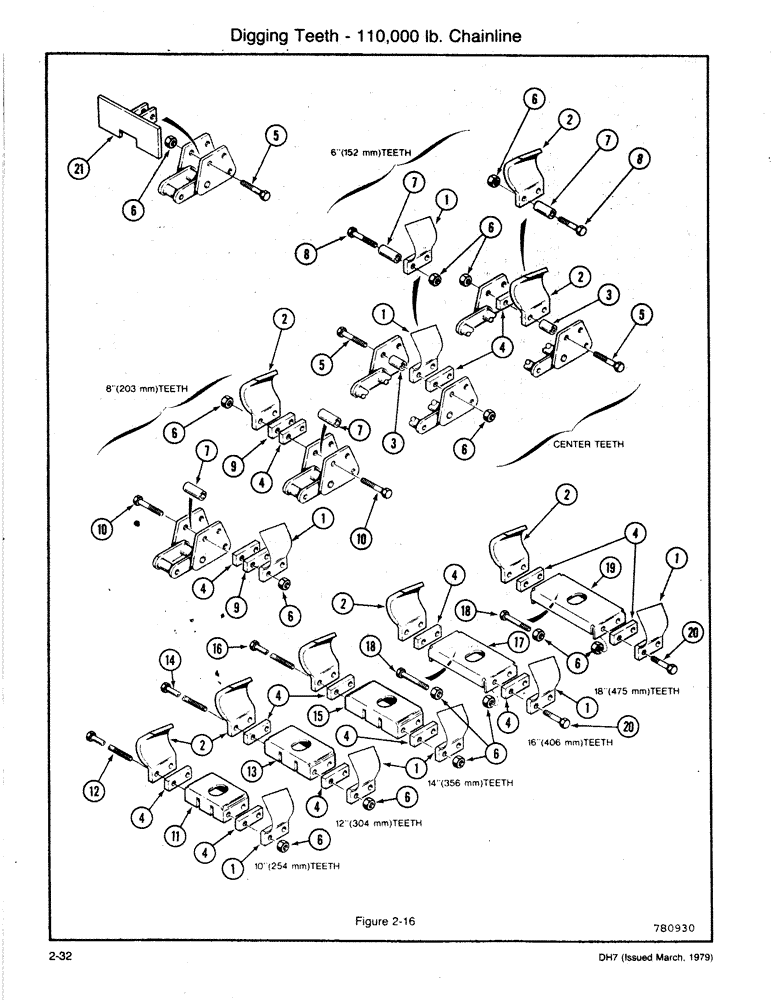

Схема запчастей Case DH7 - (2-32) - DIGGING TEETH - 110,000 LB. CHAINLINE (89) - TOOLS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H251371

TOOTH

- Digging - Left

1шт.

For One Complete Center Left Tooth Order: H585927 For One Complete Center Right Tooth Order: H585935 For One Complete 6" Left Tooth Order: H586040 For One Complete 6" Right Tooth Order: H586057 For One Complete 8" Left Tooth Order: H586065 For One Complete 8" Right Tooth Order: H586073 For One Complete 10" Tooth Order: H586099 For One complete 12" Tooth Order: H586107 For One Complete 14" Tooth Order: H586115 For One Complete 16" Tooth Order: H586123 For One Complete 18" Tooth Order: H586131

1шт.

2

H251389

TOOTH

- Digging - Right

1шт.

For One Complete Center Left Tooth Order: H585927 For One Complete Center Right Tooth Order: H585935 For One Complete 6" Left Tooth Order: H586040 For One Complete 6" Right Tooth Order: H586057 For One Complete 8" Left Tooth Order: H586065 For One Complete 8" Right Tooth Order: H586073 For One Complete 10" Tooth Order: H586099 For One complete 12" Tooth Order: H586107 For One Complete 14" Tooth Order: H586115 For One Complete 16" Tooth Order: H586123 For One Complete 18" Tooth Order: H586131

1шт.

3

H213496

SPACER

- 1 x 1-15/32 - Tubular

1шт.

4

H251504

SPACER

- 1/2 Flat

1шт.

5

H711473

BOLT

- NC HH (5/8 x 4)

1шт.

6

230-42110

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

7

H251496

SPACER

- 1 x 2-11/32 - Tubular

1шт.

8

H711481

BOLT

- NC HH (5/8 x 4-1/4)

1шт.

9

H138990

SPACER

- 5/16 Flat

1шт.

10

H711515

BOLT

- NC HH (5/8 x 5)

1шт.

11

H227660

BRACKET

- Tooth (10")

1шт.

12

H711630

BOLT

- NC HH (5/8 x 8)

1шт.

13

H227678

BRACKET

- Tooth (12")

1шт.

14

H711713

BOLT

- NC HH (5/8 x 10)

1шт.

15

H227686

BRACKET

- Tooth (14")

1шт.

16

H756031

BOLT

- NC HH (5/8 x 10)

1шт.

17

H572743

BRACKET

- Tooth (16")

1шт.

18

H711465

BOLT

- NC HH (5/8 x 3-3/4)

1шт.

19

H572750

BRACKET

- Tooth (18")

1шт.

20

H711382

BOLT

- NC HH (5/8 x 1-3/4)

1шт.

21

H573063

DIRT DRAG (7")

1шт.

Includes 2 ea. Refs. 5 & 6

1шт.

21

H573071

X

DIRT DRAG (9")

1шт.

Includes 2 ea. Refs. 5 & 6

1шт.

21

H573089

DIRT DRAG (11")

1шт.

Includes 2 ea. Refs. 5 & 6

1шт.

21

H573097

BOLT (SPREADER)

DIRT DRAG (13")

1шт.

Includes 2 ea. Refs. 5 & 6

1шт.

21

H573105

DIRT DRAG (15")

1шт.

Includes 2 ea. Refs. 5 & 6

1шт.

21

H573113

DIRT DRAG (17")

1шт.

Includes 2 ea. Refs. 5 & 6

1шт.
