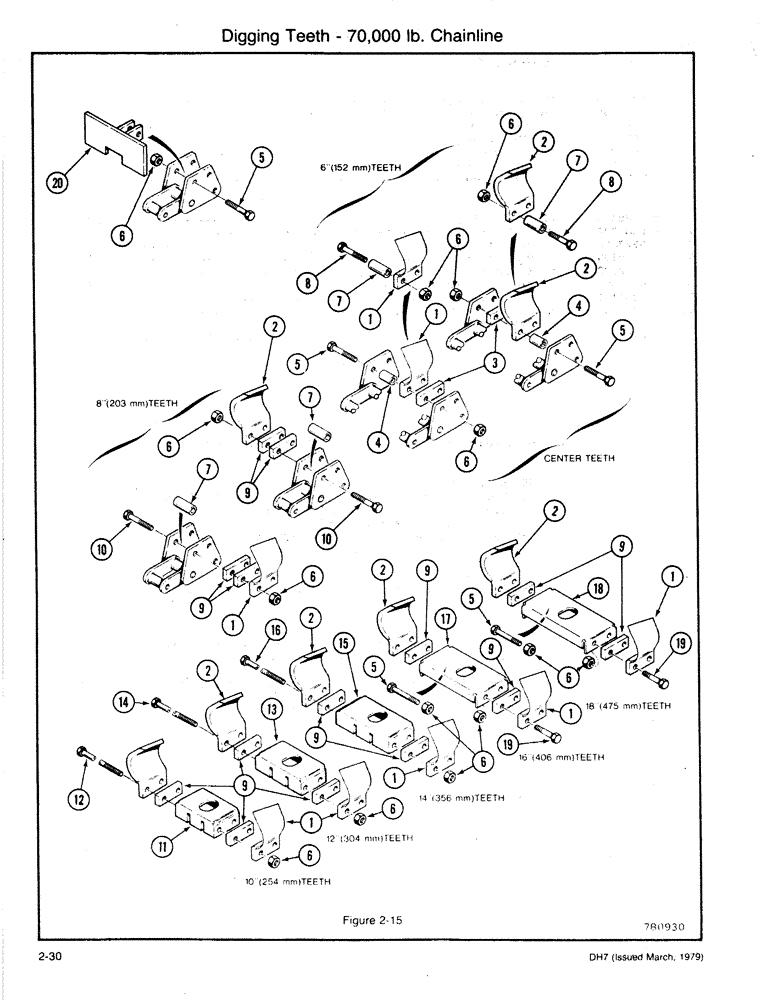

Запчасти Case DH7 (2-30) - DIGGING TEETH - 70,000 LB. CHAINLINE (89) - TOOLS

1

H251371

TOOTH

- Digging - Left

1шт.

For One Complete Center Left Tooth Order: H586149 For One Complete Center Right Tooth Order: H586156 For One Complete 6" Left Tooth Order: H585729 For One Complete 6" Right Tooth Order : H585737 For One Complete 8" Left Tooth Order : H585745 For One Complete 8" Right Tooth Order : H585752 For One Complete 10" Tooth Order: H585760 For One Complete 12" Tooth Order: H585778 For One Complete 14" Tooth Order: H585786 For One Complete 16" Tooth Order: H585794 For One Complete 18" Tooth Order: H585802

1шт.

2

H251389

TOOTH

- Digging - Right

1шт.

For One Complete Center Left Tooth Order: H586149 For One Complete Center Right Tooth Order: H586156 For One Complete 6" Left Tooth Order: H585729 For One Complete 6" Right Tooth Order : H585737 For One Complete 8" Left Tooth Order : H585745 For One Complete 8" Right Tooth Order : H585752 For One Complete 10" Tooth Order: H585760 For One Complete 12" Tooth Order: H585778 For One Complete 14" Tooth Order: H585786 For One Complete 16" Tooth Order: H585794 For One Complete 18" Tooth Order: H585802

1шт.

3

H138990

SPACER

- 5/16 Flat

1шт.

4

H213496

SPACER

- 1 x 1-15/32 Tubular

1шт.

5

H711457

BOLT

- NC HH (5/8 x 3-1/2)

1шт.

6

230-42110

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

7

H138982

SPACER

- 1 x 2-1/8 Tubular

1шт.

8

H711473

BOLT

- NC HH (5/8 x 4)

1шт.

9

H251504

SPACER

- 1/2 Flat

1шт.

10

H711515

BOLT

- NC HH (5/8 x 5)

1шт.

11

H135335

BRACKET

- Tooth (10")

1шт.

12

H711630

BOLT

- NC HH (5/8 x 8)

1шт.

13

H148551

BRACKET

- Tooth (12")

1шт.

14

H711713

BOLT

- NC HH (5/8 x 10)

1шт.

15

H227686

BRACKET

- Tooth (14")

1шт.

Another bracket used (NOT A SUB) Part H135590

1шт.

16

H756031

BOLT

- NC HH (5/8 x 12)

1шт.

17

H543892

TOOTH

BRACKET - Tooth (16")

1шт.

18

H543900

TOOTH

BRACKET - Tooth (18")

1шт.

19

H711739

BOLT

- NC HH (5/8 x 1-3/4)

1шт.

20

H544429

SPARE PART

DIRT DRAG (5")

1шт.

Includes 2 each of P/N H711457 and H738054.(Refs. 5 and 6)

1шт.

20

H544437

LINK

DIRT DRAG (7")

1шт.

Includes 2 each of P/N H711457 and H738054.(Refs. 5 and 6)

1шт.

20

H544445

X

DIRT DRAG (9")

1шт.

Includes 2 each of P/N H711457 and H738054.(Refs. 5 and 6)

1шт.

20

H544452

X

DIRT DRAG (11")

1шт.

Includes 2 each of P/N H711457 and H738054.(Refs. 5 and 6)

1шт.

20

H544460

SPARE PART

DIRT DRAG (13")

1шт.

Includes 2 each of P/N H711457 and H738054.(Refs. 5 and 6)

1шт.

20

H544478

X

DIRT DRAG (15")

1шт.

Includes 2 each of P/N H711457 and H738054.(Refs. 5 and 6)

1шт.

20

H544486

SPARE PART

DIRT DRAG (17")

1шт.

Includes 2 each of P/N H711457 and H738054.(Refs. 5 and 6)

1шт.
