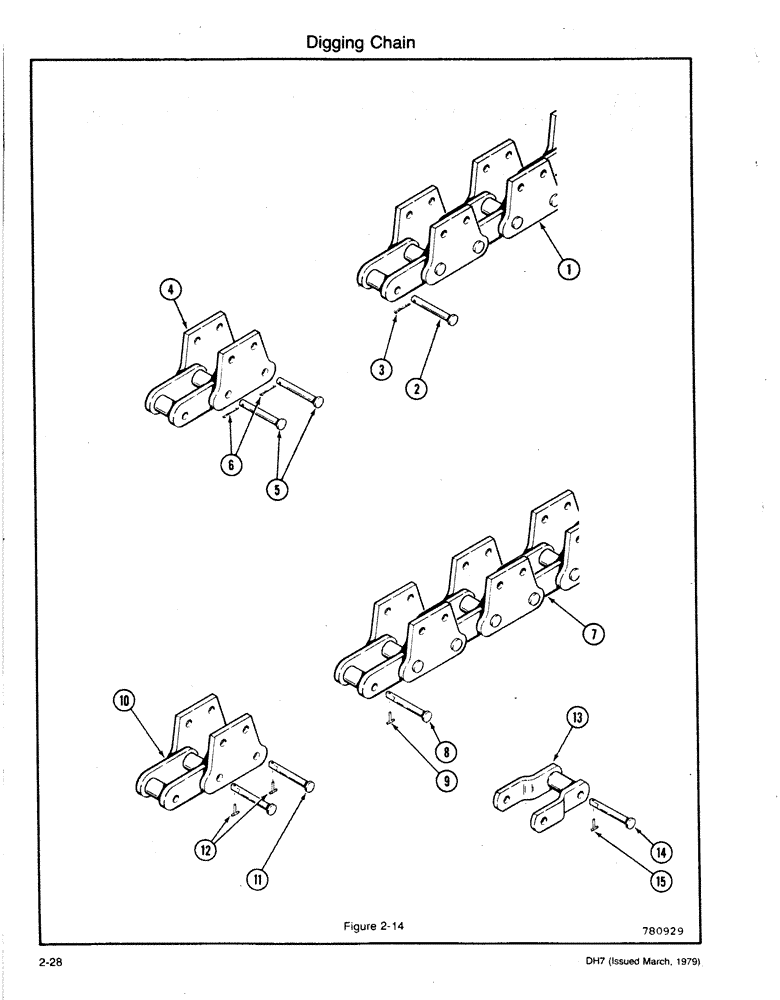

Запчасти Case DH7 (2-28) - DIGGING CHAIN (89) - TOOLS

1

H601328

CHAIN (CE)

CHAIN Assembly - 57 Pitches (70,000 lb.), Includes: Ref. 2 and 3

1шт.

When replacing complete 70,000 lb. chain, order the following 45" Boom - (1) ea. 57 pitch chain 58" Boom - (1) ea. 57 pitch chain, (1) ea. 10 Pitch Chain 73" Boom - (1) ea. 57 pitch chain, (2) ea. 10 pitch Chain (1) ea. 2 pitch chain 86" Boom - (1) ea. 57 pitch chain, (3) ea. 10 pitch chain, (1) ea. 2 pitch chain

1шт.

1

H601336

CHAIN (CE)

CHAIN Assembly - 10 Pitches (70,000 lb.), Includes: Ref. 2 and 3

1шт.

When replacing complete 70,000 lb. chain, order the following 45" Boom - (1) ea. 57 pitch chain 58" Boom - (1) ea. 57 pitch chain, (1) ea. 10 Pitch Chain 73" Boom - (1) ea. 57 pitch chain, (2) ea. 10 pitch Chain (1) ea. 2 pitch chain 86" Boom - (1) ea. 57 pitch chain, (3) ea. 10 pitch chain, (1) ea. 2 pitch chain

1шт.

2

H283663

AXLE PIN

PIN - Connector

1шт.

3

H297655

AXLE PIN

PIN - Keeper

2шт.

4

H601344

LINK

CHAIN Assembly - 2 Pitches (70,000 lb.), Includes: Ref. 5 and 6

1шт.

When replacing complete 70,000 lb. chain, order the following 45" Boom - (1) ea. 57 pitch chain 58" Boom - (1) ea. 57 pitch chain, (1) ea. 10 Pitch Chain 73" Boom - (1) ea. 57 pitch chain, (2) ea. 10 pitch Chain (1) ea. 2 pitch chain 86" Boom - (1) ea. 57 pitch chain, (3) ea. 10 pitch chain, (1) ea. 2 pitch chain

1шт.

5

H283663

AXLE PIN

PIN - Connector

2шт.

6

H297655

AXLE PIN

PIN - Keeper

2шт.

7

H588400

CHAIN (AG)

CHAIN Assembly - 54 Pitches (110,000 lb.), Includes: Ref. 8 and 9

1шт.

When replacing complete 110,000 lb. chain, order the following 45" Boom - (1) ea. 54 pitch chain, (1) ea. half link 58" Boom - (1) ea. 54 pitch chain, (1) ea. 10 pitch chain 73" Boom - (1) ea. 54 pitch chain, (2) ea. 10 pitch chain, (1) Half link 86" Boom - (1) ea. 54 pitch chain, (3) ea. 10 pitch chain, (1) Half link

1шт.

7

H588392

CHAIN (AG)

CHAIN Assembly - 10 Pitches (110,000 lb.), Includes: Ref. 8 and 9

1шт.

When replacing complete 110,000 lb. chain, order the following 45" Boom - (1) ea. 54 pitch chain, (1) ea. half link 58" Boom - (1) ea. 54 pitch chain, (1) ea. 10 pitch chain 73" Boom - (1) ea. 54 pitch chain, (2) ea. 10 pitch chain, (1) Half link 86" Boom - (1) ea. 54 pitch chain, (3) ea. 10 pitch chain, (1) Half link

1шт.

8

H227868

PIN

- Connector

1шт.

9

H234195

AXLE PIN

PIN - Keeper

1шт.

10

H572982

LINK

CHAIN Assembly - 2 Pitches (110,000 lb.), Includes: Ref. 11 and 12

1шт.

11

H227868

PIN

- Connector

2шт.

12

H234195

AXLE PIN

PIN - Keeper

2шт.

13

H227850

LINK

- Half (110,000 lb.), Includes: Ref. 14 and 15

1шт.

When replacing complete 70,000 lb. chain, order the following 45" Boom - (1) ea. 57 pitch chain 58" Boom - (1) ea. 57 pitch chain, (1) ea. 10 Pitch Chain 73" Boom - (1) ea. 57 pitch chain, (2) ea. 10 pitch Chain (1) ea. 2 pitch chain 86" Boom - (1) ea. 57 pitch chain, (3) ea. 10 pitch chain, (1) ea. 2 pitch chain

1шт.

14

H227868

PIN

- Connector

1шт.

15

H234195

AXLE PIN

PIN - Keeper

1шт.
