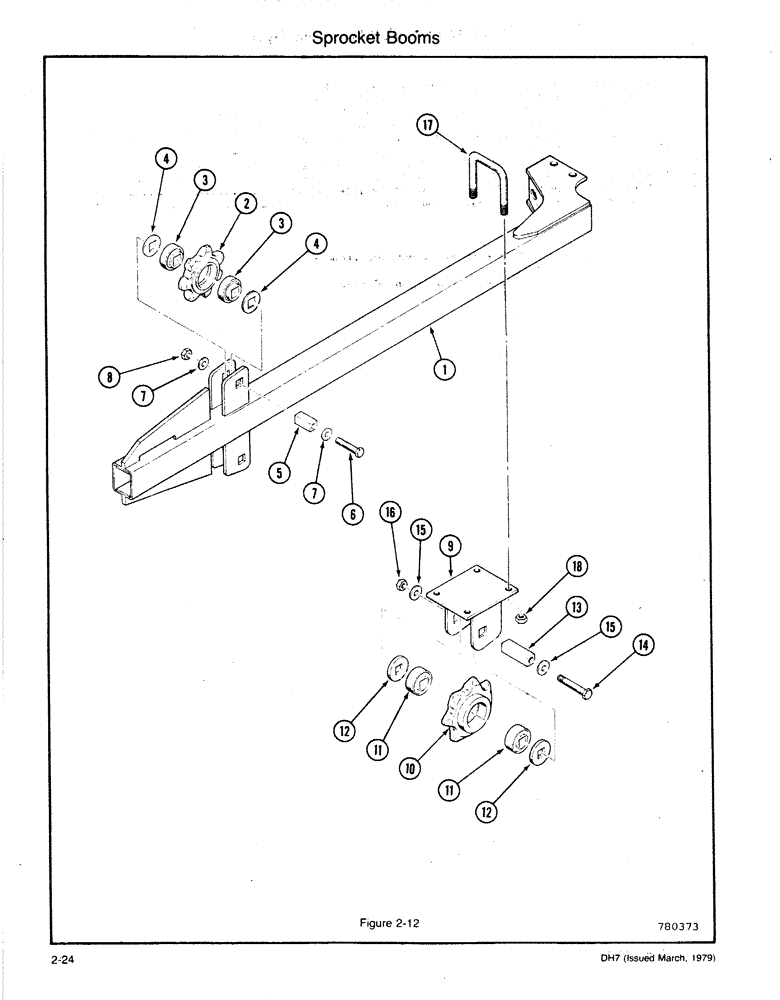

Запчасти Case DH7 (2-24) - SPROCKET BOOMS (89) - TOOLS

1

H599894

BOOM

- 45"

1шт.

For complete boom assembly, including sprockets, order the following: 45" - H599944 58" - H599951 73" - H599969 86" - H599977

1шт.

1

H599886

BOOM

- 58"

1шт.

For complete boom assembly, including sprockets, order the following: 45" - H599944 58" - H599951 73" - H599969 86" - H599977

1шт.

1

H599902

BOOM

- 73"

1шт.

For complete boom assembly, including sprockets, order the following: 45" - H599944 58" - H599951 73" - H599969 86" - H599977

1шт.

1

H599910

BOOM

- 86"

1шт.

For complete boom assembly, including sprockets, order the following: 45" - H599944 58" - H599951 73" - H599969 86" - H599977

1шт.

H544171

SPROCKET ASSY.

SPROCKET Assembly - Idler, Includes: Ref. 2 and 3

2шт.

2

H132761

DRIVE SPROCKET

SPROCKET

1шт.

3

H747139

BALL BEARING

BEARING

2шт.

4

H136663

SPACER

4шт.

5

H251025

BOOM

SHAFT, Includes: Ref. 6 - 8

2шт.

6

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

2шт.

7

195-108

WASHER,5/8"

- Wrought (5/8)

4шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

H544593

DRIVE SPROCKET

IDLER Assembly, Includes: Ref. 9 - 18

2шт.

Use only with 73" and 86" Booms

1шт.

9

H544585

BRACKET

- Idler

1шт.

H544171

SPROCKET ASSY.

SPROCKET Assembly - Idler, Includes: Ref. 10 and 11

1шт.

10

H132761

DRIVE SPROCKET

SPROCKET

1шт.

11

H747139

BALL BEARING

BEARING

2шт.

12

H136663

SPACER

2шт.

13

H251025

BOOM

SHAFT, Includes: Ref. 14 - 16

1шт.

14

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

1шт.

15

195-108

WASHER,5/8"

- Wrought (5/8)

2шт.

16

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

17

H81372

HARDWARE

U-BOLT

2шт.

Use only with 73" and 86" Booms

1шт.

18

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

Use only with 73" and 86" Booms

1шт.
