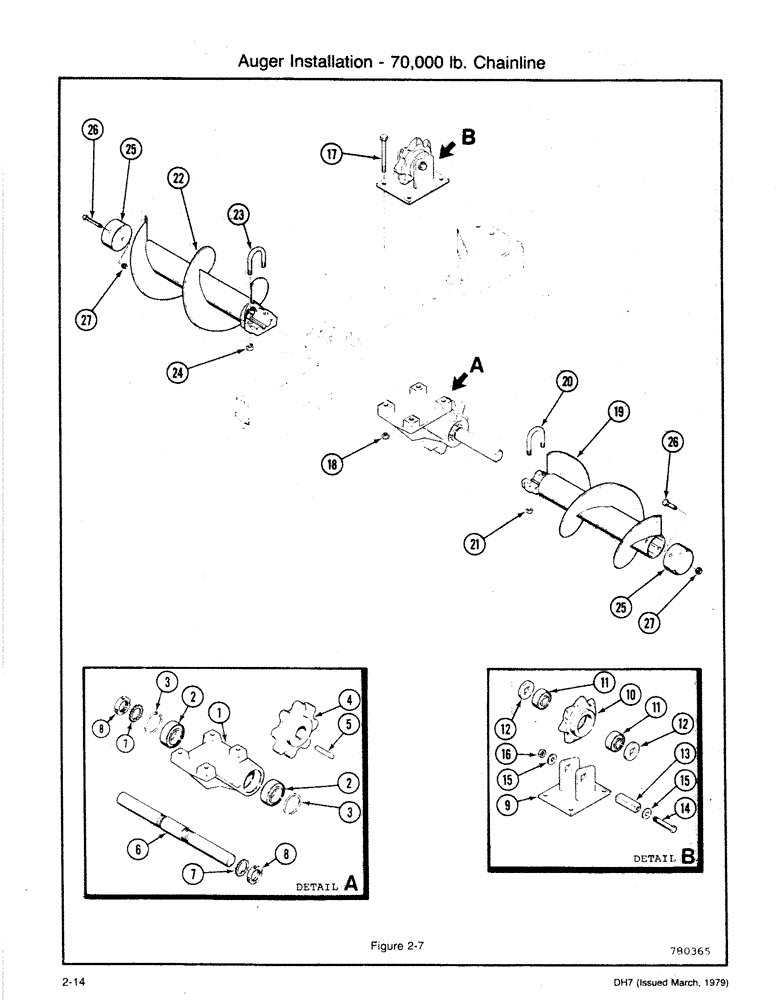

Запчасти Case DH7 (2-14) - AUGER INSTALLATION - 70,000 LB. CHAINLINE (89) - TOOLS

H569327

AUGER

DRIVE Assembly - Auger, Includes: Ref. 1 - 8

1шт.

1

H219253

HOUSING

1шт.

2

H747394

BEARING,55.6mm ID x 100mm OD x 33.4mm W

Includes: Ref. 3

2шт.

3

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, 3.938", Int, #393

2шт.

4

H99226

DRIVE SPROCKET

SPROCKET

1шт.

5

H99150

KEY

- Square (1/2 x 2-3/8)

1шт.

6

H219410

SHAFT

Includes: Ref. 7 and 8

1шт.

7

192-311

BEARING WASHER,Bearing, W-11

WASHER - Retainer

2шт.

8

131-1037

BEARING LOCK NUT,Bearing, 2.1654" Bore

NUT - Bearing

2шт.

H569582

BRACKET

IDLER - Assembly, Includes: Ref. 9 - 18

1шт.

9

H569574

BRACKET

- Mounting

1шт.

H544171

SPROCKET ASSY.

SPROCKET Assembly, Includes: Ref. 10 and 11

1шт.

10

H132761

DRIVE SPROCKET

SPROCKET

1шт.

11

H747139

BALL BEARING

BEARING

2шт.

12

H136663

SPACER

2шт.

13

H251025

BOOM

SHAFT, Includes: Ref. 14 - 16

1шт.

14

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

1шт.

15

195-108

WASHER,5/8"

- Wrought (5/8)

2шт.

16

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

17

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- NC HH (5/8 x 6)

4шт.

18

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

19

H567982

AUGER

- L/H, Includes: Ref. 20 and 21

1шт.

20

H226282

U-BOLT

1шт.

21

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

22

H567990

AUGER

- R/H, Includes: Ref. 23 and 24

1шт.

23

H226282

U-BOLT

1шт.

24

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

25

H570507

CYLINDER END CAP

CAP, Includes: Ref. 26 and 27

2шт.

26

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- NC HH (5/8 x 5)

2шт.

27

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.
