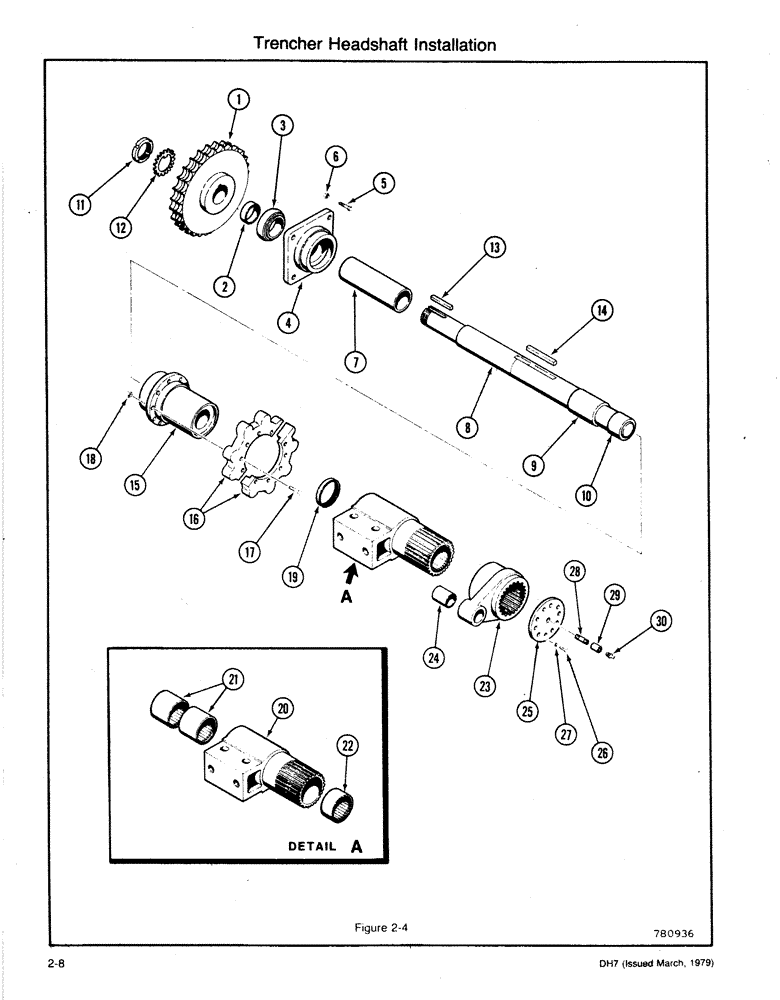

Запчасти Case DH7 (2-08) - TRENCHER HEADSHAFT INSTALLATION (89) - TOOLS

1

H58693

DRIVE SPROCKET

SPROCKET - Driven

1шт.

2

H36996

SPACER

1шт.

3

H747170

BALL BEARING

BEARING

1шт.

4

H301473

BEARING

BLOCK - Bearing, Includes: Ref. 5 and 6

1шт.

5

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

6

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

7

H211383

SLEEVE CYLINDER

SPACER

1шт.

8

H567925

SHAFT

Assembly - Drive, Includes: Ref. 9 and 10

1шт.

9

H70268

BEARING

RACE & SEAL Set

1шт.

10

H748152

RING RACE

RACE - Bearing

1шт.

11

131-1037

BEARING LOCK NUT,Bearing, 2.1654" Bore

NUT - Bearing Lock

1шт.

12

192-311

BEARING WASHER,Bearing, W-11

WASHER - Lock

1шт.

13

H37002

KEY

- Square (1/2 x 3)

1шт.

14

H101196

KEY

- Square (1/2 x 4-7/8)

1шт.

15

H211367

HUB CAP

HUB - Digging Chain Sprocket

1шт.

16

H527226

SPROCKET - Split, 9.75 OD

1шт.

Use With 70,000 Pound Chainline

1шт.

Order 1 pc. of P/N H37168, 10 pcs. of P/N 114-254, and 10 pcs. of P/N 131-1133.

1шт.

16

H573030

SPROCKET - Split, 10.250 OD, Includes: Ref. 17 and 18

1шт.

Use With 110,000 Pound Chainline

1шт.

Order 1 pc. of P/N H220509, 10 pcs. of P/N 114-254, and 10 pcs. of P/N 131-1133.

1шт.

17

H723262

BOLT

- NF HH (3/8 x 1-3/4)

8шт.

18

H746750

LOCK NUT

NUT - NF Hex (3/8)

8шт.

19

H749093

OIL SEAL

1шт.

H599985

PIVOT ASSY.

PIVOT Assembly - Boom, Includes: Ref. 20 - 22

1шт.

20

H281329

PIVOT ASSY.

PIVOT

1шт.

21

H748137

NEEDLE BEARING

BEARING

2шт.

22

H748145

BEARING

1шт.

23

H568683

CRANK - Boom, Includes: Ref. 24

1шт.

24

H217190

BUSHING

1шт.

25

H37028

PLATE ASSY.

PLATE - Cap, Includes: Ref. 26 and 27

1шт.

26

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- Round Heat Slotted (#10-24 x 1/2) Another screw used (NOT A SUB) Part 165-22

10шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

10шт.

28

221-108

NIPPLE, LUBE

NIPPLE - Pipe (1/8 x 1-3/4)

1шт.

29

221-335

COUPLING,Pipe, 1/8" NPT

- Pipe (1/2)

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Grease

1шт.

For p/n h573030, order 1 pc. of p/n h220509, 10 pcs of p/n 114-254, and 10 pcs of p/n 131-1133.

1шт.
