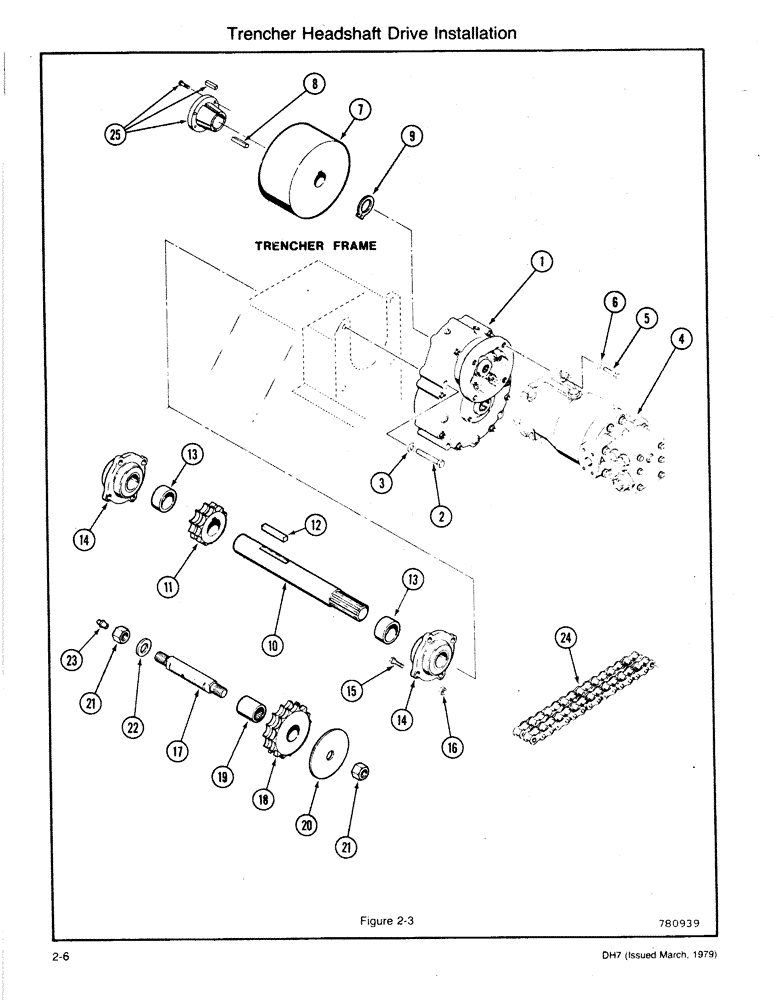

Запчасти Case DH7 (2-06) - TRENCHER HEADSHAFT DRIVE INSTALLATION (89) - TOOLS

1

H641258

GEARBOX ASSY

GEARBOX ASSEMBLY - Trencher Drive, Includes: Ref. 2 and 3 to, Serial Range: Up-1199436

1шт.

1

H650945

GEARBOX ASSY

GEARBOX ASSEMBLY - Trencher Drive, Includes: Ref. 2 and 3 1199436 &, Start Serial: Up

1шт.

2

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

4шт.

3

195-106

WASHER,1/2"

- Wrought (1/2)

4шт.

Ref. 3 anthoer washer used, not a sub P/N H87452.

1шт.

4

H647172

MOTOR HOUSING

MOTOR - Trencher (See Figure 2-40), Includes: Ref. 5 and 6

1шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

6

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

7

H374165

FLYWHEEL, Includes: Ref. 8 and 9

1шт.

8

H262394

KEY

- Square

1шт.

9

A7409

SNAP RING,#137, Ext

RING, Snap, #137, Ext

1шт.

10

H362384

SHAFT

- Gearbox

1шт.

11

H45054

SPROCKET ASSY.

SPROCKET - Drive, Includes: Ref. 12

1шт.

12

H76406

KEY

- Square

1шт.

13

H362855

SPACER

2шт.

14

H757989

BEARING

Includes: Ref. 15 and 16

2шт.

15

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

16

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

8шт.

17

H362871

SHAFT - Idler Sprocket

1шт.

18

H37754

DRIVE SPROCKET

SPROCKET - Idler

1шт.

19

H748103

NEEDLE BEARING

BEARING - Idler Sprocket

1шт.

20

H362889

COVER - Idler Slide

1шт.

21

H755819

NUT

- NC Hex Elastic Stop (3/4)

2шт.

22

195109

WASHER - Flat (1/2)

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

24

H758003

CHAIN (AG)

CHAIN - ASA #80 (78 Pitches)

1шт.

H227868

PIN

CONNECTOR - ASA #80

1шт.

H748350

DRAG LINK

LINK - Half - ASA #80

1шт.

H234195

AXLE PIN

PIN - Keeper

1шт.

25

H758425

BUSHING

- Split Taper (Includes 3 bolts & 1 key)

1шт.

Connector link to P/N H750992.

1шт.

PIN H234195 used with H227868 connector pin.

1шт.
