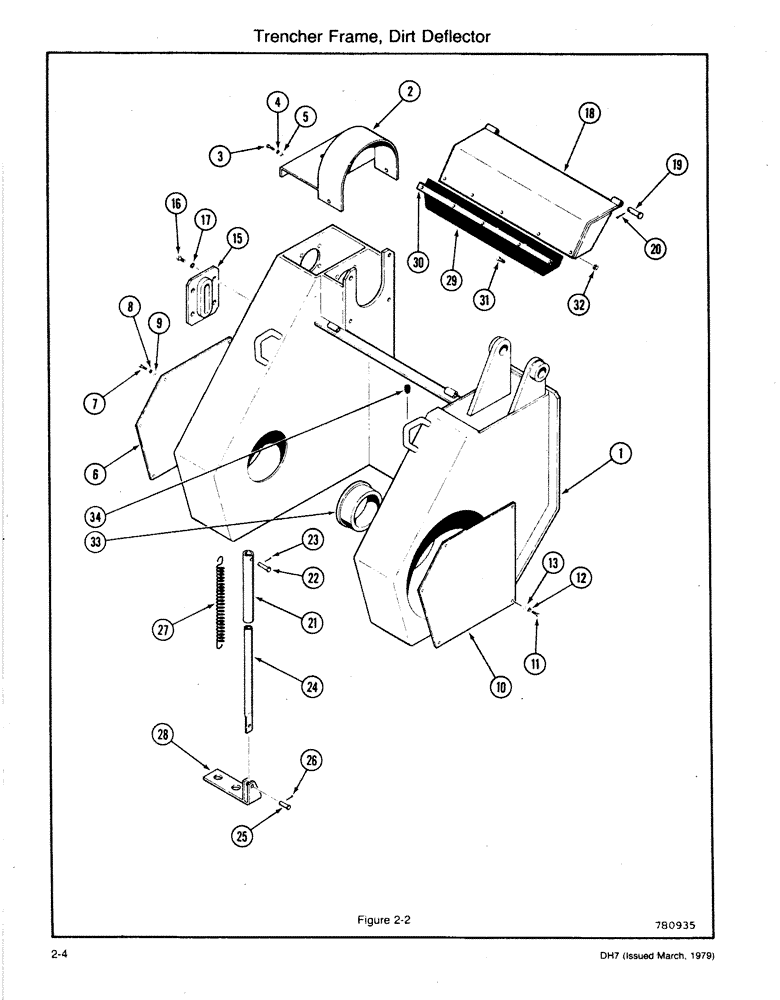

Запчасти Case DH7 (2-04) - TRENCHER FRAME, DIRT DEFLECTOR (89) - TOOLS
№
Артикул
Название
Примечание
Количество
1
H636142
FRAME
ASSEMBLY - Trencher
1шт.
2
H641126
COVER - Flywheel, Includes: Ref. 3 - 5
1шт.
3
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
4шт.
4
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
5
195-521
WASHER,5/16", SAE
- Flat (5/16)
4шт.
6
H215301
COVER - RH, Includes: Ref. 7 - 9
1шт.
7
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
5шт.
8
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
5шт.
9
195-521
WASHER,5/16", SAE
- Flat (5/16)
5шт.
10
H221606
COVER - LH, Includes: Ref. 11 - 13
1шт.
11
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
5шт.
12
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
5шт.
13
195-521
WASHER,5/16", SAE
- Flat (5/16)
5шт.
15
H636167
BRACKET - Idler Mounting, Includes: Ref. 16 and 17
1шт.
16
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
4шт.
17
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
18
H568550
DEFLECTOR
- Dirt, Includes: Ref. 19 and 20
1шт.
19
H126102
AXLE PIN
PIN - Clevis (3/8 x 2-7/8)
2шт.
20
132-340
COTTER PIN,5/32" x 3/4"
5/32" x 3/4"
2шт.
21
H392308
PIPE CLAMP,26.7 mm OD x 381 mm L
TUBE, Includes: Ref. 22 and 23
1шт.
22
H31971
CLEVIS COUPLING
PIN - Clevis (3/8 x 2-1/4)
1шт.
23
132-340
COTTER PIN,5/32" x 3/4"
5/32" x 3/4"
1шт.
24
H216762
TUBE,0.493" ID x 0.675" OD
Includes: Ref. 25 and 26
1шт.
25
H92015
AXLE PIN
PIN - Clevis (3/8 x 1-1/4)
1шт.
26
132-340
COTTER PIN,5/32" x 3/4"
5/32" x 3/4"
1шт.
27
H32946
VALVE SPRING
SPRING
1шт.
28
H599936
BRACKET
- Tube Mounting
1шт.
29
H217125
FLAP
- Dirt
1шт.
30
H217133
STRIP - Dirt Flap, Includes: Ref. 31 and 32
1шт.
31
113-104
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
5шт.
33
H36905
BUSHING
(part of frame assembly)
1шт.
34
H746040
SCREW - Set (1/2 x 1/2 cup point) (part of frame assembly)
1шт.
Выбрано товаров: 33
