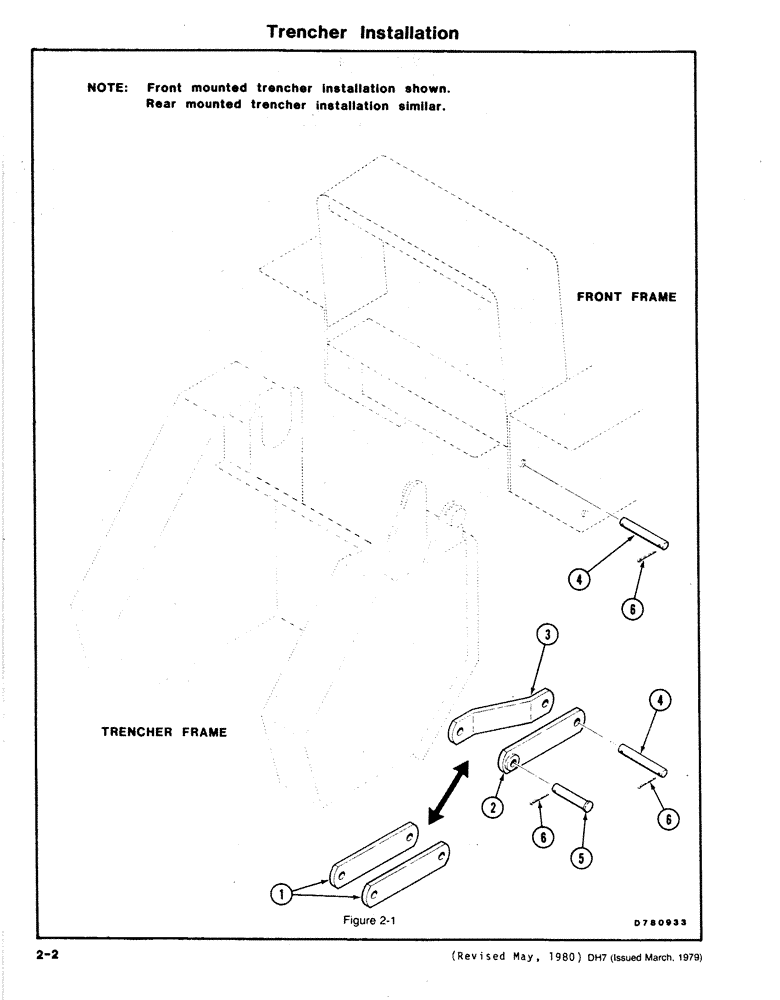

Запчасти Case DH7 (2-02) - TRENCHER INSTALLATION (89) - TOOLS

1

H373993

LINK - Trencher Attach, Serial Range: 1164542-1164638

4шт.

2

H650184

LINK - Lower Outside Trencher Attach 1164639 and, Start Serial: On

2шт.

3

H392266

LINK - Lower Inside Trencher Attach 1164639 and, Start Serial: On

2шт.

4

H363127

PIN - Mounting (1 x 7)

4шт.

Ref. 4 new frame must use pins, H408617, they measure 1-1/4 DIA.

1шт.

5

H70623

AXLE PIN

PIN - Clevis (1 x 3-1/2), Includes: Ref. 6

2шт.

6

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

10шт.
