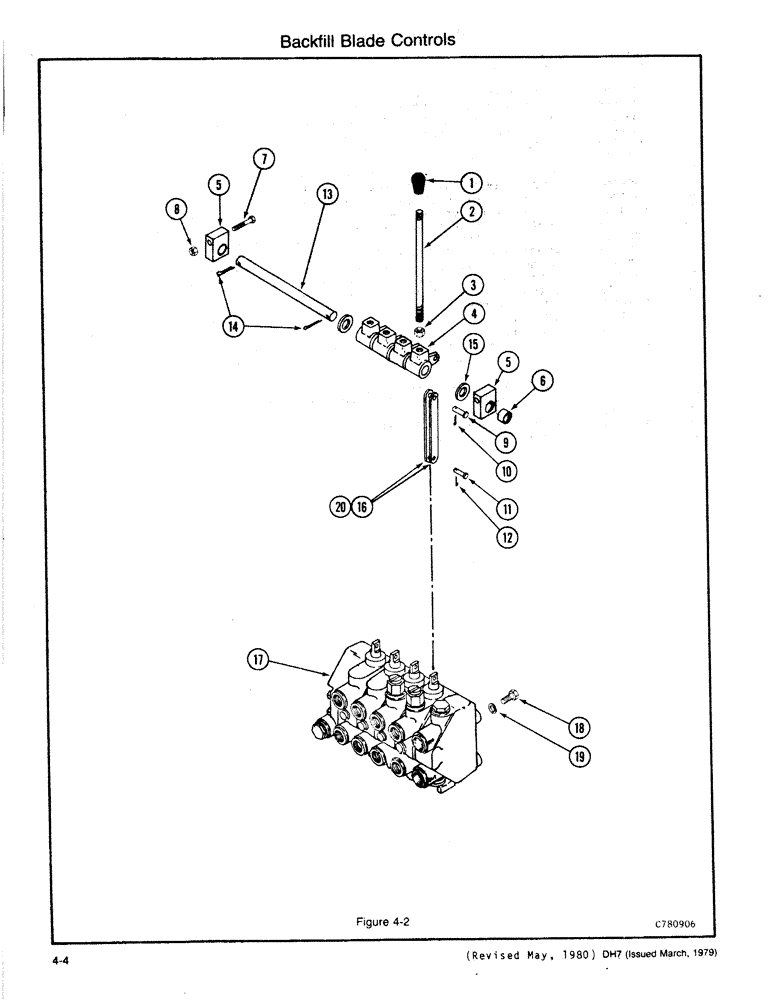

Запчасти Case DH7 (4-04) - BACKFILL BLADE CONTROLS (86) - DOZER

1

A14051

GRIP

KNOB

4шт.

2

H191916

ROD

LEVER - Valve

4шт.

3

87016560

JAM NUT,Jam, 3/8"-16, G5

- NC Hex Jam (3/4)

4шт.

4

H275255

CRANK LEVER

CASTING - Lever

4шт.

5

H558403

BLOCK

ASSEMBLY, Includes: Ref. 6 - 8

2шт.

6

H151894

BUSHING

1шт.

7

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

9

D23693

AXLE PIN

PIN - Clevis (1/4 x 1), Includes: Ref. 10

4шт.

10

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

11

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - Clevis (3/16 x 37/64), Includes: Ref. 12

4шт.

12

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

13

H382135

SHAFT - Valve Lever, Includes: Ref. 14

1шт.

14

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

15

H26468

SPACER

2шт.

16

H219006

DRAG LINK

LINK - Valve (used with Cessna valve)

8шт.

17

H645887

VALVE ASSEMBLY - Backfill Blade Control (See Figures 4-21, 4-22), Includes: Ref. 18 and 19

1шт.

18

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

3шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

20

H390781

LINK - Valve (used with Kontak valve)

8шт.
