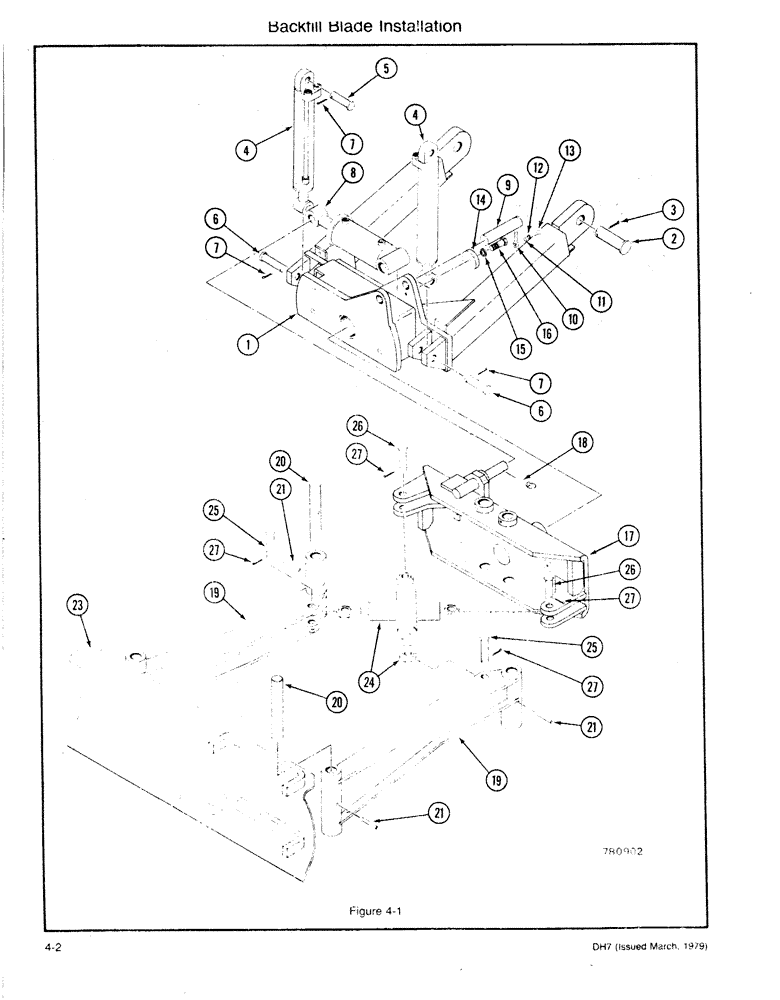

Запчасти Case DH7 (4-02) - BACKFILL BLADE INSTALLATION (86) - DOZER

1

H642025

LIFT ASSEMBLY, Includes: Ref. 2 and 3

1шт.

2

H210666

PIN - Clevis (1-1/2 x 5-1/4)

2шт.

3

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

4

H559435

CYLINDER BLOCK

LIFT CYLINDER ASSEMBLY (See Figure 4-16), Includes: Ref. 5 - 7

2шт.

5

H151134

PIN - Clevis (1 x 3-5/8)

2шт.

6

H43711

PIN - Clevis (1 x 4)

2шт.

7

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

8

H568444

TILT CYLINDER ASSEMBLY (See Figure 4-14), Includes: Ref. 9 - 13

1шт.

9

H241885

PIN - Headless (- 1/2 x 6 5/8)

1шт.

10

H313981

PIN

- Retainer

1шт.

11

195-525

WASHER,3/8", SAE

- Flat (3/8)

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

14

H377515

WASHER - Retainer, Includes: Ref. 15 and 16

1шт.

15

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

16

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

17

H641845

FRAME - Backfill Blade

1шт.

18

A33509

PIN,11.18mm OD

- Klik

1шт.

19

H377531

ARM - Swing, Includes: Ref. 20 and 21

2шт.

20

H377507

PIN

- Headless

4шт.

21

138-182

LOCK PIN,3/8" x 3", Slotted

PIN, 3/8" x 3", Slotted

4шт.

23

H642264

BLADE ASSEMBLY

1шт.

24

H580597

ANGLE CYLINDER ASSEMBLY (See Figure 4-18), Includes: Ref. 25 - 27

2шт.

25

H43711

PIN - Clevis (1 x 4)

2шт.

26

H70623

AXLE PIN

PIN - Clevis (1 x 3-1/2)

2шт.

27

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.
