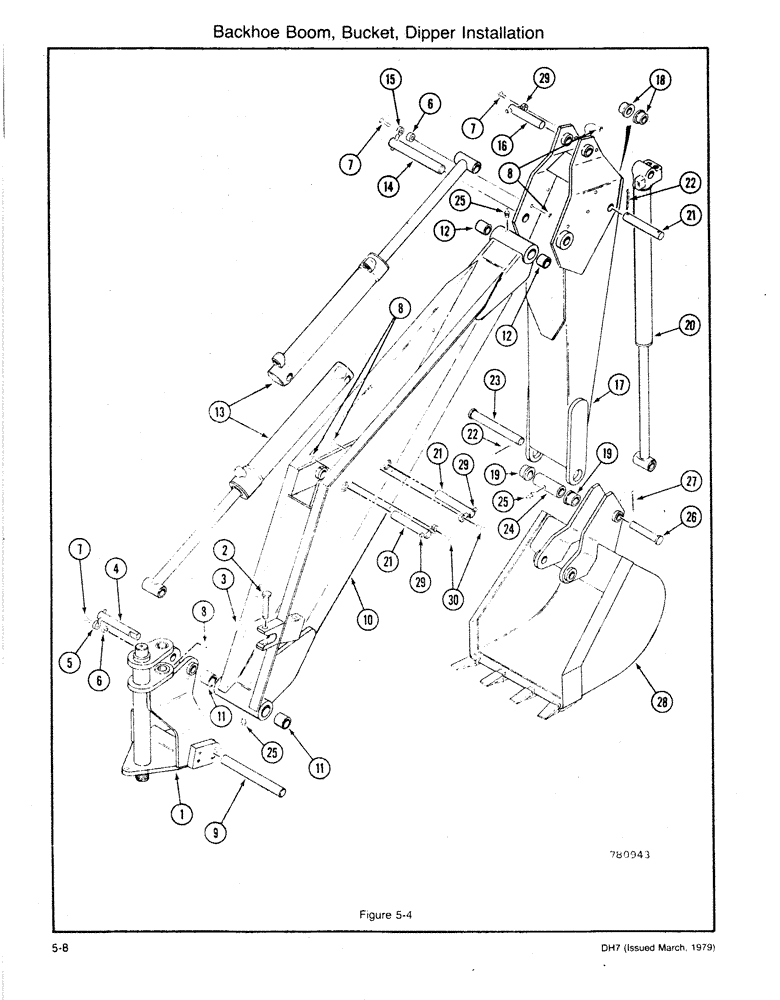

Запчасти Case DH7 (5-08) - BACKHOE BOOM, BUCKET, DIPPER INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

1

H529511

MAST ASSEMBLY

(See Figure 5-06)

1шт.

2

H120683

PIN,15.88mm OD x 94.06mm L

- Transport Lock

1шт.

3

A70250

PIN

- Hair

1шт.

4

H109793

PIN

- Boom, Serial Range: Cylinder-Mast

1шт.

5

H313981

PIN

- Retainer

1шт.

6

H53793

SPACER

- Pin

2шт.

7

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

8

131-1180

LOCK NUT,1/4"-20, GA

NUT - Hex (3/8 NC Lock)

5шт.

9

H109652

AXLE PIN

PIN - Boom Mounting

1шт.

10

H528547

BOOM

ASSEMBLY, Includes: Ref. 11 and 12

1шт.

11

H54205

BUSHING

- Boom Pivot

2шт.

12

H77024

BUSHING

- Dipper Stick Pivot

2шт.

13

G100931

CYLINDER

BOOM AND CROWD CYLINDER ASSEMBLY (See Figure 5-28)

2шт.

14

H109819

PIN

- Stick Pivot

1шт.

15

H36509

AXLE PIN

PIN - Retainer

1шт.

16

H109801

AXLE PIN

PIN - Rod End Crowd Cylinder

1шт.

17

H529420

ARM

DIPPER STICK ASSEMBLY, Includes: Ref. 18 and 19

1шт.

18

H50823

BUSHING

- Bucket Cylinder Pivot

2шт.

19

H36640

BUSHING

- Bucket Pivot

2шт.

20

H530493

CYLINDER

BUCKET CYLINDER ASSEMBLY (See Figure 5-30)

1шт.

21

H50690

AXLE PIN,28.57mm OD x 171.45mm L

PIN - Hd End Boom, Crowd and Bucket Cylinder

3шт.

22

132-314

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

3шт.

23

H109827

AXLE PIN

PIN - Bucket Hinge

1шт.

24

H110114

SLEEVE

- Grease

1шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

26

H79285

PIN

- Rod End Bucket Cylinder

1шт.

27

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

28

BUCKET

1шт.

Machinery Item - See Figure 5-24 for spare parts.

1шт.

29

H313981

PIN

- Retainer

3шт.

30

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.
