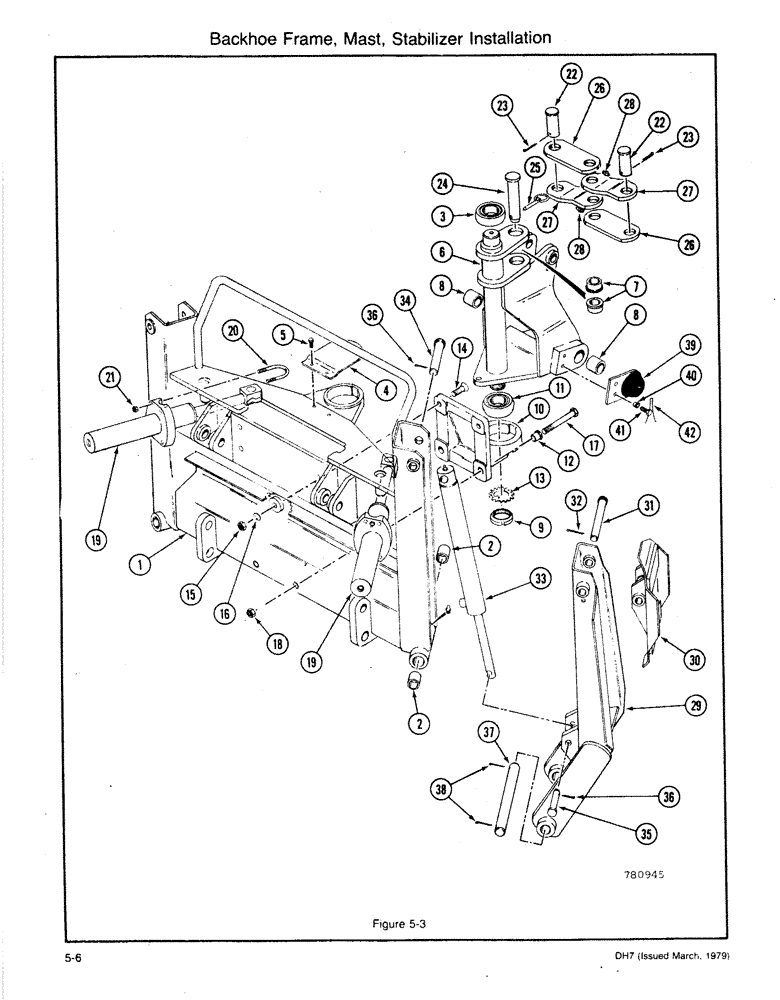

Запчасти Case DH7 (5-06) - BACKHOE FRAME, MAST STABILIZER INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

1

H587618

MOUNTING PARTS

FRAME - Backhoe Mounting, Includes: Ref. 2 and 3

1шт.

2

H77024

BUSHING

- Stabilizer

4шт.

3

H747170

BALL BEARING

BEARING - Upper Swing

1шт.

4

H194977

PLATE

- Cover, Includes: Ref. 5

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

6

H529511

MAST ASSEMBLY

Includes: Ref. 7 and 8

1шт.

7

H36640

BUSHING

- Swing Cylinder

2шт.

8

H35865

BUSHING

- Boom Pivot

2шт.

9

131-1037

BEARING LOCK NUT,Bearing, 2.1654" Bore

NUT - Bearing Lock

1шт.

H528877

MOUNTING PARTS

MOUNT - Lower Mast, Includes: Ref. 10 - 12

1шт.

10

H36418

CASTING

- Mount

1шт.

11

H747170

BALL BEARING

BEARING - Lower Mast

1шт.

12

H35766

BUSHING

- Step

2шт.

13

192-311

BEARING WASHER,Bearing, W-11

WASHER - Bearing Lock

1шт.

14

164-211

HEX SOC SCREW,Flat Hd, 3/4" - 10 x 2 1/2"

- Flat Socket Head Cap (3/4 x 2-1/2 NC)

2шт.

15

129-148

JAM NUT,Jam, 3/4"-10, G5

- Hex (3/4 NC Jam)

2шт.

16

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

17

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

2шт.

18

131-1131

LOCK NUT,3/4"-10, GA

NUT - Hex (3/4 NC Lock)

2шт.

19

G100905

CYLINDER ASSY.

SWING CYLINDER ASSEMBLY (See Figure 5-32), Includes: Ref. 20 and 21

2шт.

20

H110270

HARDWARE

U-BOLT

4шт.

21

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC Lock)

8шт.

22

H240085

PIN

- Rod End (1-1/2 x 3-5/8)

2шт.

23

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

24

H76851

AXLE PIN

PIN -, Serial Range: Links-Mast

1шт.

25

D33805

PIN

- Klik (7/16)

1шт.

26

H111575

LINK

- Straight

2шт.

27

H111583

DRAG LINK

LINK - Offset

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

29

H585216

STABILIZER

ASSEMBLY

2шт.

30

H533646

LARGE PLATE

PAD - Stabilizer

2шт.

31

H218263

AXLE PIN

PIN - Stabilizer Mounting

2шт.

32

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

33

H587782

CYLINDER BLOCK

STABILIZER CYLINDER ASSEMBLY (See Figure 5-34)

2шт.

34

H114983

AXLE PIN,31.72mm OD x 163.51mm L

PIN - Hd End

2шт.

35

H114967

AXLE PIN

PIN - Rod End

2шт.

36

113-313

PIN - Cotter (1/4 x 2)

4шт.

37

H109777

PIN

- Stabilizer Mounting

2шт.

38

132-355

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

4шт.

39

H625731

SHOCK ABSORBER

BUMPER - Rubber

2шт.

40

H35980

WASHER

BUSHING - Step

4шт.

41

H95877

BOLT

BOLT - Special

4шт.

42

H95885

WIRE - Lock

2шт.
