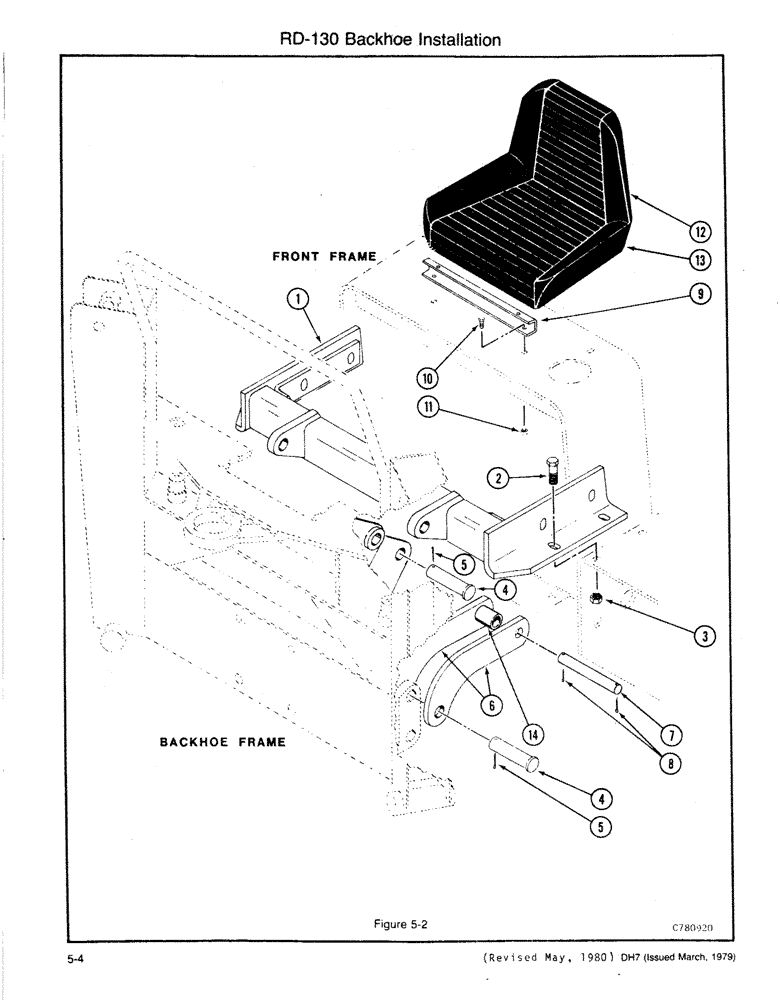

Запчасти Case DH7 (5-04) - RD-130 BACKHOE INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

1

H638254

FRAME - Backhoe Mounting, Includes: Ref. 2 and 3

1шт.

2

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- Hex Hd (3/4 x 2-1/2 NC)

8шт.

3

131-1131

LOCK NUT,3/4"-10, GA

NUT - Hex (3/4 NC - Lock)

8шт.

4

H146019

PIN - Clevis (1-1/4 x 4-13/16)

4шт.

Another pin used, not a sub, P/N H227207.

1шт.

5

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

6

H367730

LINK

4шт.

7

H363127

PIN - (1 x 7-3/4) Headless

2шт.

8

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

9

H374488

CHANNEL

- Seat Mounting, Includes: Ref. 10 and 11

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

131-1130

LOCK NUT,5/8"-11, GA

NUT - Hex (3/8 NC - Lock)

2шт.

H594556

SEAT

ASSEMBLY, Includes: Ref. 12 and 13

1шт.

12

H297515

CUSHION ASSY.

CUSHION - Seat Back

1шт.

13

H297507

SEAT

CUSHION - Seat

1шт.

14

H392399

SLEEVE

2шт.
