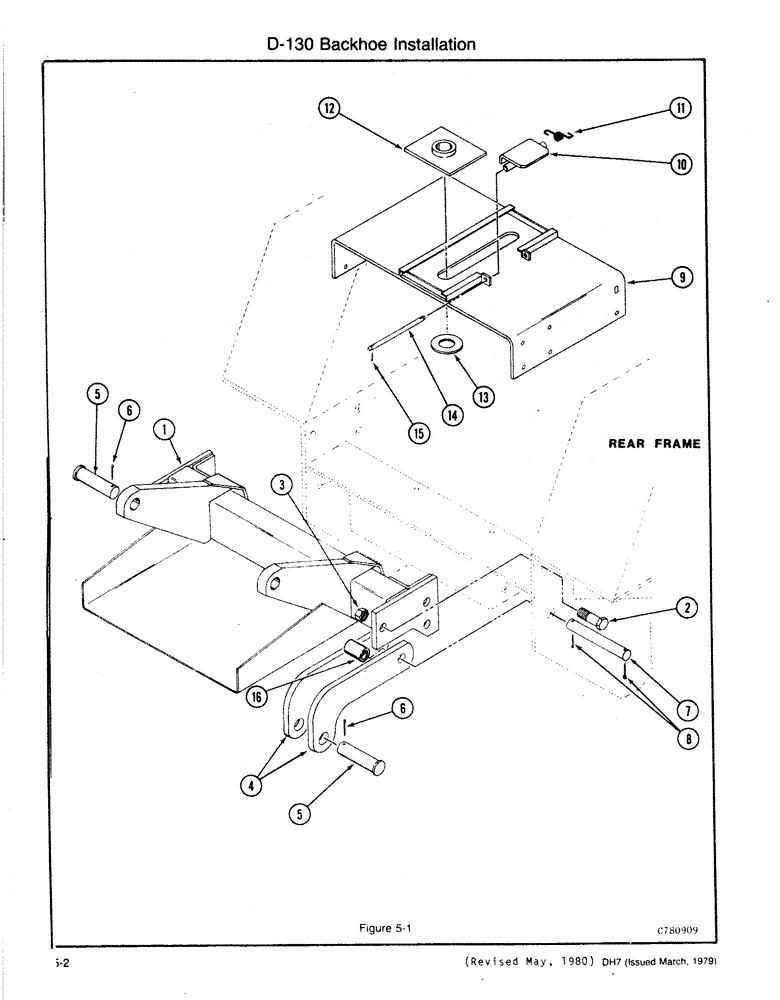

Запчасти Case DH7 (5-02) - D-130 BACKHOE INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

1

H639716

BRACKET - Backhoe Mounting, Includes: Ref. 2 and 3

1шт.

2

113-810

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

- NC HH (7/8 x 2-1/2)

6шт.

3

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (7/8 NC)

6шт.

Ref. 3 another nut used, not a sub P/N 131-1132.

1шт.

4

H367730

LINK - Lower, Includes: Ref. 5 - 8

4шт.

5

H146019

PIN - Clevis (1-1/4 x 4-13/16)

4шт.

Ref. 5 another pin used, not a sub part H227207.

1шт.

6

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

7

H363127

PIN - Headless (1 x 7-3/4)

2шт.

8

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

9

H631036

BRACKET - Seat Mounting

1шт.

10

H631051

LATCH - Seat

1шт.

11

H306258

SPRING

1шт.

12

H631044

POST - Seat

1шт.

13

H348169

WASHER - Retainer

1шт.

14

H348151

PIN - Latch

1шт.

15

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

16

H392399

SLEEVE

2шт.
