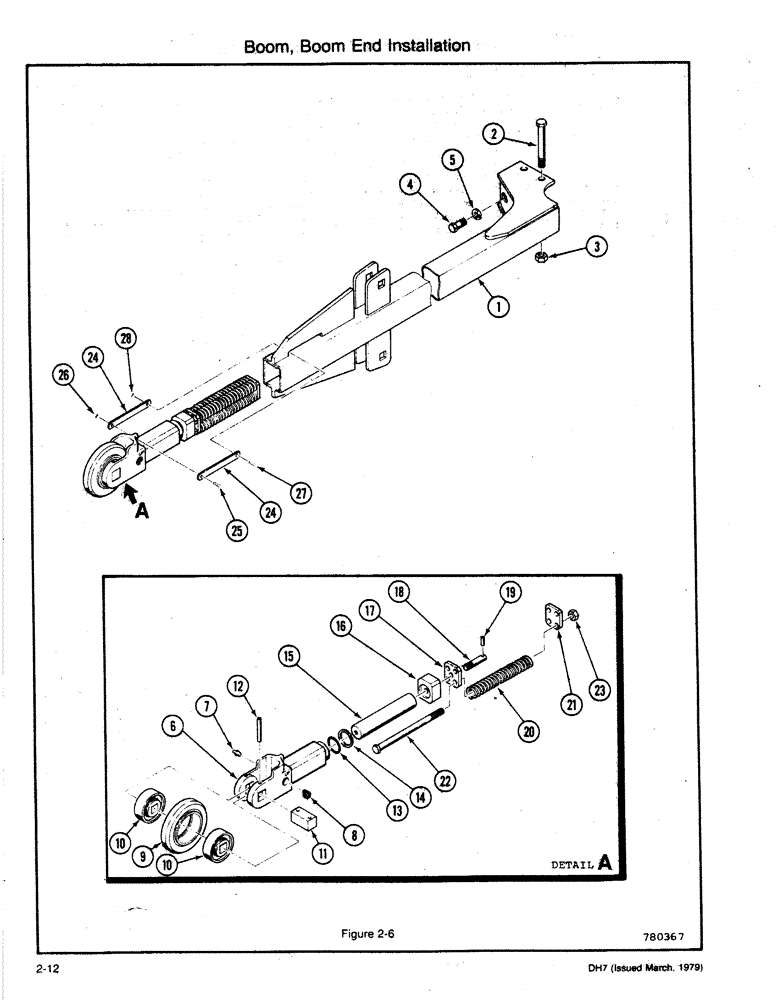

Запчасти Case DH7 (2-12) - BOOM, BOOM END INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

1

BOOM Assembly, Includes: Ref. 2 - 5

1шт.

See Figures 2-24, 2-26

1шт.

2

H721514

BOLT (SPREADER)

BOLT - NC HH (1 x 6-1/2) - Grade 8

2шт.

3

131-1221

LOCK NUT,1"-8, GC

NUT - NC Hex T/L (1)

2шт.

4

H721332

SCREW

BOLT - NC HH (1 x 2) - Grade 8

2шт.

5

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

H530808

BOOM END Assembly, Includes: Ref. 6 - 23

1шт.

6

H530824

CENTER JOINT

CASTING

1шт.

7

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - Grease (Includes Cap)

1шт.

8

H114728

PLUG

- Bleed

1шт.

H508168

ROLLER BEARING

ROLLER Assembly - Outer, Includes: Ref. 9 and 10

1шт.

9

H71779

ROLLER

- Outer

1шт.

10

H747139

BALL BEARING

BEARING

2шт.

11

H80838

SHAFT

- Square, Includes: Ref. 12

1шт.

12

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

2шт.

13

H745430

O-RING,59.69 mm ID

1шт.

14

H745711

WASHER

- Backup

1шт.

15

H114512

PLUNGER

ROD - Plunger

1шт.

16

H114520

BLOCK

PLATE - Bearing

1шт.

17

H114546

GUIDE

PLATE - Retainer

1шт.

18

H114538

STUD

Includes: Ref. 19

1шт.

19

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

20

H101998

VALVE SPRING

SPRING

4шт.

21

H114546

GUIDE

PLATE - Retainer, Includes: Ref. 22 and 23

1шт.

22

H90787

BOLT

BOLT - Special

4шт.

23

230-41110

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

24

H114934

DRAG LINK

LINK, Includes: Ref. 25 - 28

2шт.

25

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

1шт.

27

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

28

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

1шт.
