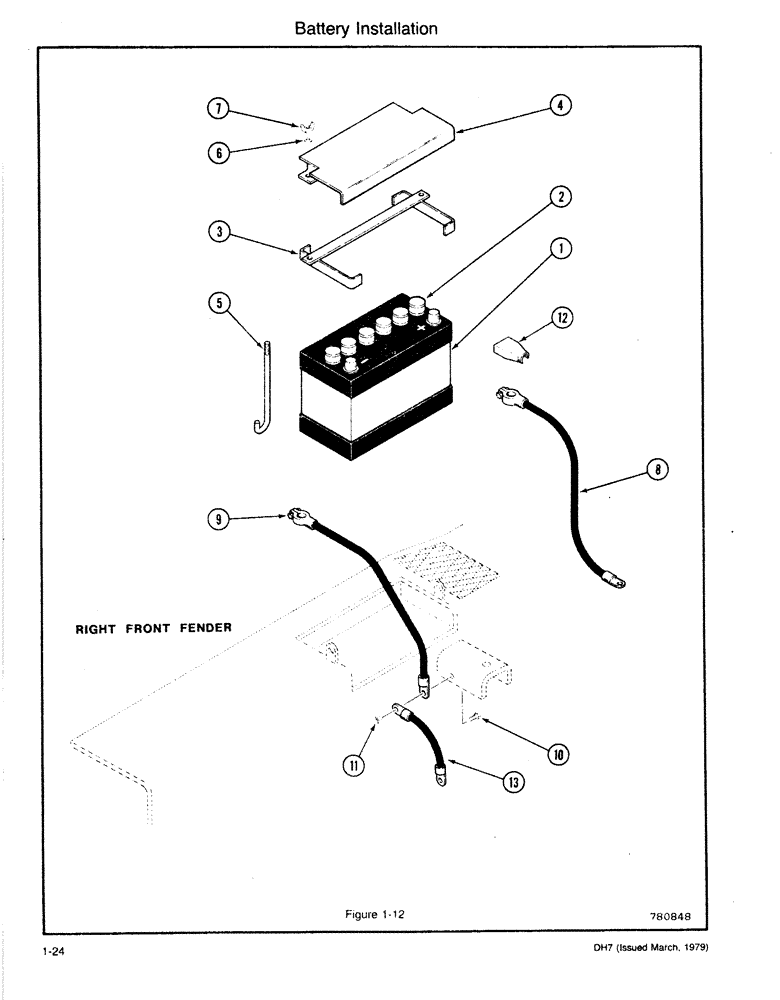

Запчасти Case DH7 (1-24) - BATTERY INSTALLATION (55) - ELECTRICAL SYSTEMS

1

A60878

BATTERY

- Dry, Includes: Ref. 2

1шт.

2

A60553

CAP

6шт.

3

H578302

BATTERY BOX

BRACKET - Hold Down

1шт.

4

H614750

COVER

- Battery, Includes: Ref. 5 - 7

1шт.

5

T31481

SCREW

J-BOLT

2шт.

6

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

7

129-419

WING NUT,5/16"-18

NUT - Wing (5/16)

2шт.

8

H106096

CABLE PULLING GRIP

CABLE - Battery (Positive)

1шт.

9

H106096

CABLE PULLING GRIP

CABLE - Battery (Negative), Includes: Ref. 10 and 11

1шт.

10

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

1шт.

12

H102681

COVER ASSY

COVER - Terminal

1шт.

13

H256990

CABLE PULLING GRIP

CABLE - Ground -, Serial Range: Frame-Engine

1шт.

Ref. 3 and 4 should use P/N H409821.

1шт.
