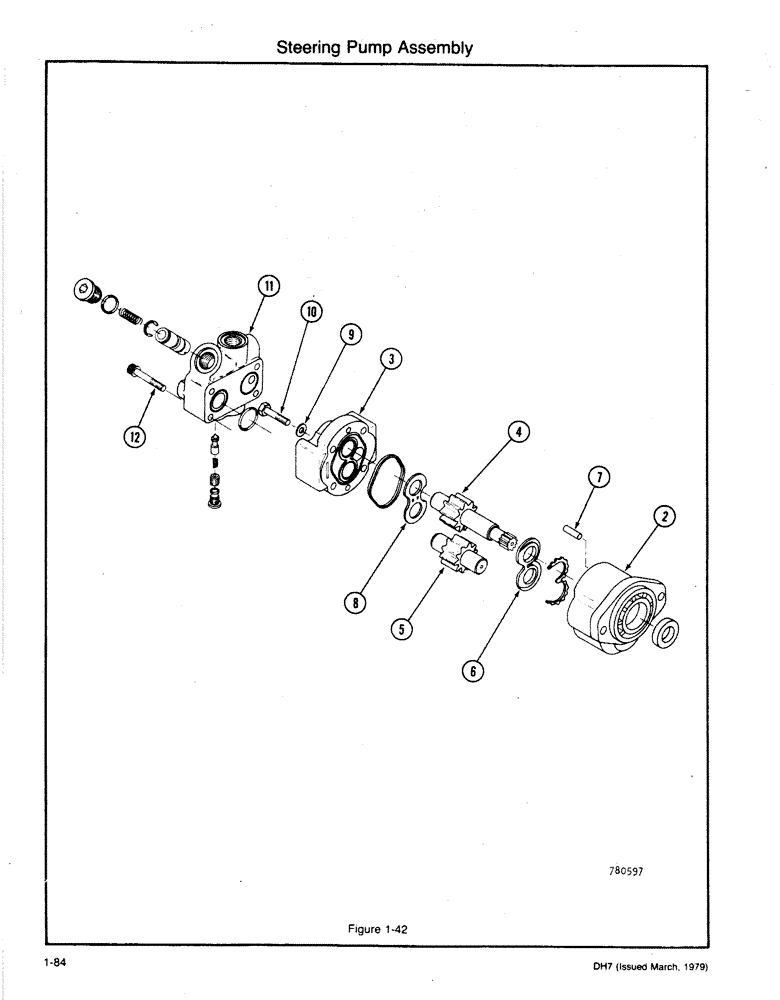

Запчасти Case DH7 (1-84) - STEERING PUMP ASSEMBLY (41) - STEERING

1

H643577

PUMP

ASSEMBLY - Steering, Includes: Ref. 2 - 12

1шт.

2

H648196

BODY ASSEMBLY

1шт.

3

H648204

COVER ASSEMBLY (rear ports)

1шт.

4

H389130

GEAR - Drive

1шт.

5

H389148

GEAR - Driven

1шт.

6

H389155

PLATE - Wear

1шт.

7

H392035

PIN - Dowel

1шт.

8

H392043

PLATE - Thrust

1шт.

9

D74441

WASHER

4шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

11

H648212

LOCK VALVE

VALVE ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

BODY - Valve

1шт.

12

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

BOLT - FLG HD (3/8 x 2)

4шт.

13

H647982

KIT

SEAL KIT (not shown)

1шт.

Ref 13 includes seal kit H647990 .

1шт.

14

H647990

KIT

SEAL KIT (includes seal kit H647982) (not shown)

1шт.
