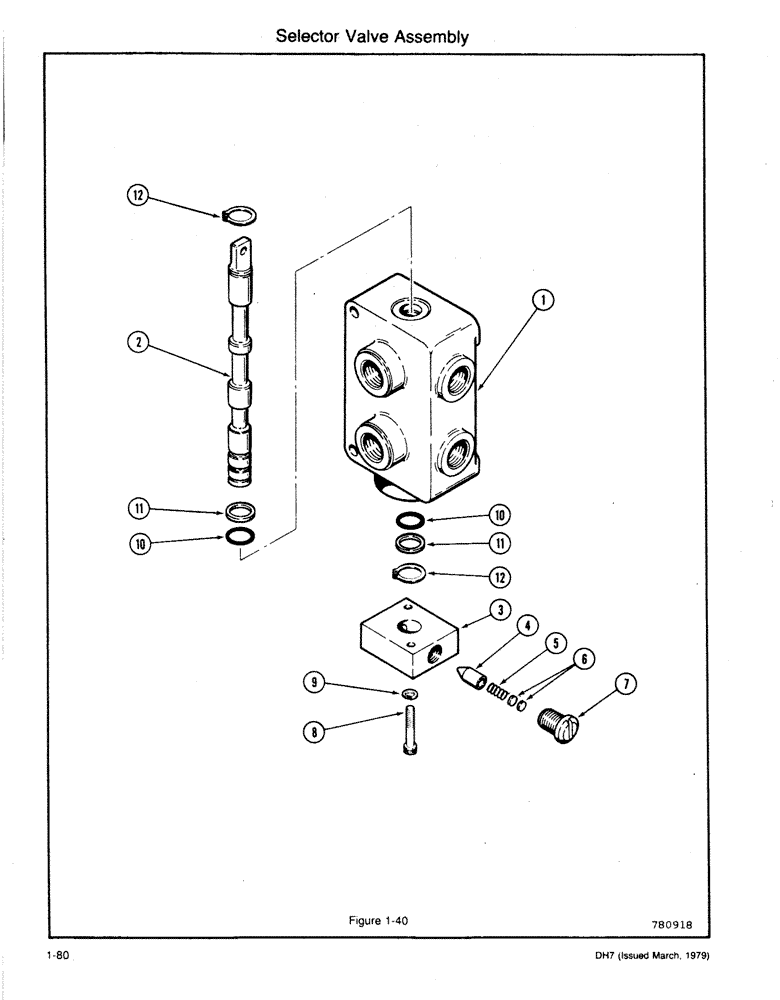

Запчасти Case DH7 (1-80) - SELECTOR VALVE ASSEMBLY (41) - STEERING

H646943

LOCK VALVE

VALVE Assembly - Selector, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

H389023

BLOCK

- Detent

1шт.

4

H104992

PAWL

- Detent

2шт.

5

H105049

SPRING

- Detent

2шт.

6

H141788

DISC

- Detent

1шт.

7

H105015

PLUG

- Detent

2шт.

8

A45149

SPECIAL BOLT

CAPSCREW - Socket Head

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

H629790

KIT

- Seal Repair, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

O RING

2шт.

11

NSS

NOT SOLD SEPARAT

RING - Backup

2шт.

12

NSS

NOT SOLD SEPARAT

RING - Retaining

2шт.
