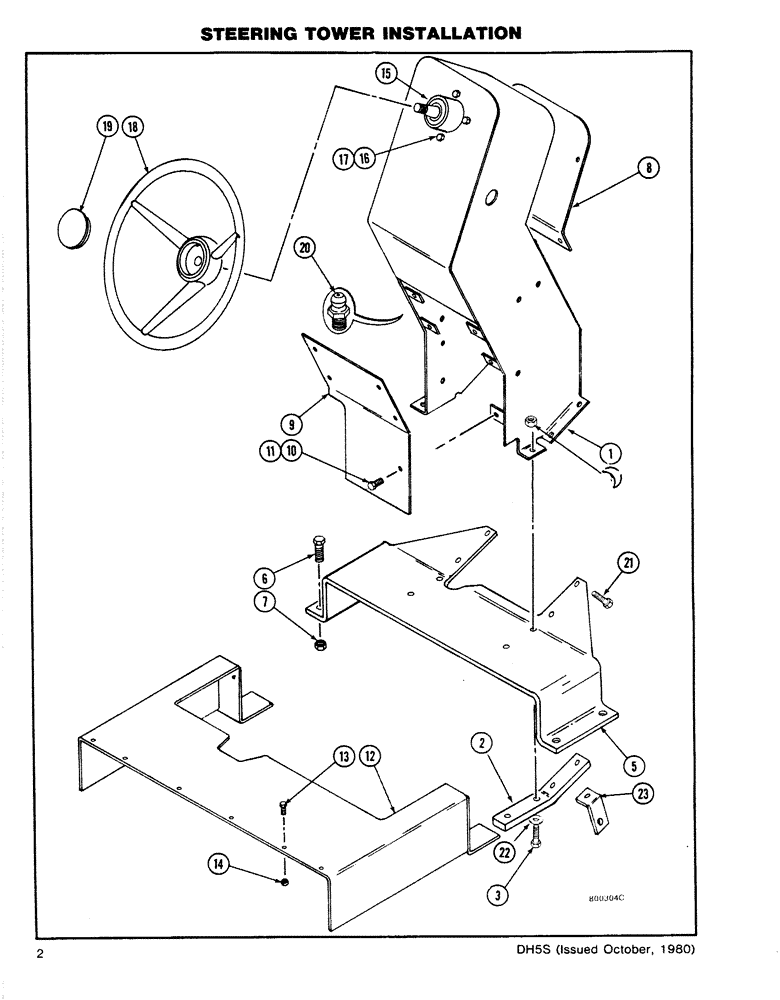

Запчасти Case DH5 (02) - STEERING TOWER INSTALLATION (41) - STEERING

1

H655936

TOWER - Steering

1шт.

2

H405670

RIB - Reinforcing

2шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

6шт.

5

H405746

MOUNTING - Steering Tower

1шт.

6

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- NC HH (1/2 x 1 1/2)

4шт.

7

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

4шт.

8

H404194

COVER

- Tower - Front

1шт.

9

H404426

COVER

- Tower - Rear

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

9шт.

11

H346650

NUT

- "U" (5/16)

9шт.

12

H656561

FLOORPLATE

1шт.

13

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

14

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

15

H651703

GUIDE

STEERING CONTROL VALVE ASSEMBLY - (See figure 14)

1шт.

All machines except DH5 Quad

1шт.

15

H660100

GUIDE

STEERING CONTROL VALVE ASSEMBLY - (See figure 16)

1шт.

DH5 Quad machines only

1шт.

16

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

18

H393280

WHEEL (STEERING)

WHEEL - Steering

1шт.

19

H256701

CAP

- Steering Wheel

1шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Shifting Lever) 1/4"-28 NPT x .54" lg

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

195-525

WASHER,3/8", SAE

4шт.

23

H416008

BRACKET - Steering Console Support

1шт.
