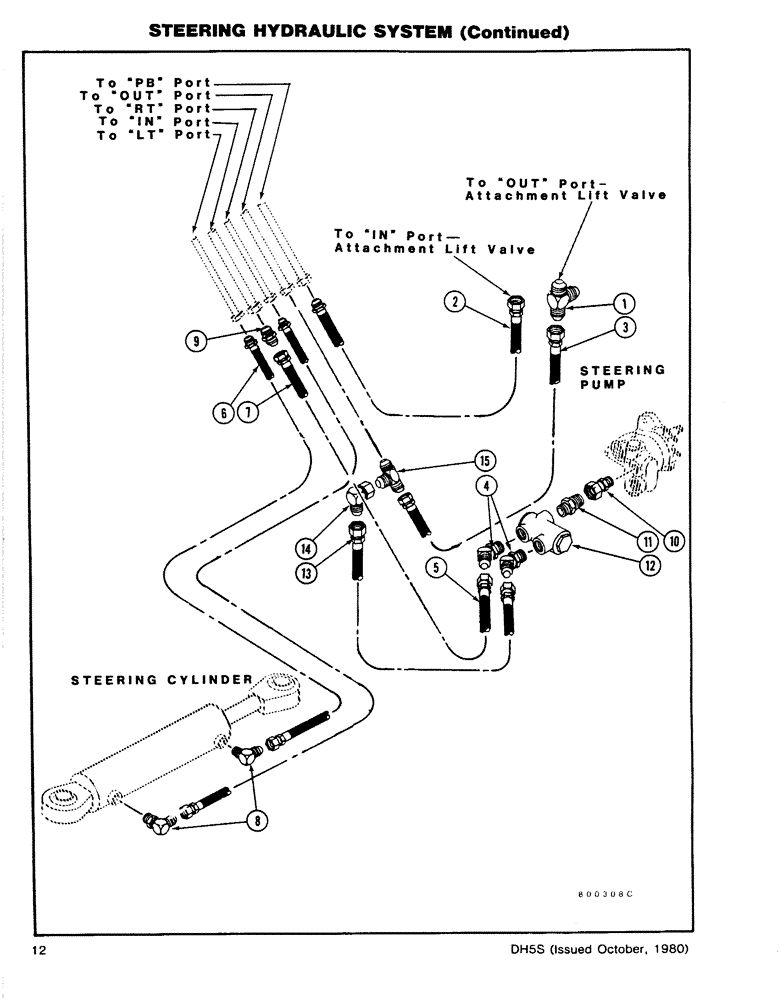

Запчасти Case DH5 (12) - STEERING HYDRAULIC SYSTEM (CONTINUED) (41) - STEERING

1

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- (7/8 JIC M x 7/8 JIC M x 7/8 JIC M)

1шт.

2

H200378

HOSE,0.38" ID x 45.00", SAE 100R1

1шт.

3

H209783

HOSE ASSY.

HOSE - 1/2 x 46 (3/4 JIC Fe Sw x 7/8 JIC Fe Sw)

1шт.

4

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree (3/4 ORB x 3/4 JIC M)

2шт.

5

H323857

HOSE ASSY.

HOSE - 3/8 x 94 (3/4 JIC Fe Sw Ends)

1шт.

6

H256503

HOSE ASSY.

HOSE - 1/4 x 56 (9/16 JIC Fe Sw)

1шт.

7

H339499

HOSE ASSY.

HOSE - 1/4 x 48 (9/16 JIC M x 9/16 JIC Fe Sw)

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M)

2шт.

9

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - (3/4 JIC M)

1шт.

10

218-5253

HYD CONNECTOR,9/16" - 18 ORB x 3/8" - 18 NPT

CONNECTOR - (9/16 ORB x 3/8 NPSM Fe Sw)

1шт.

11

218-5440

FITTING

CONNECTOR - (3/4 ORB x 3/8 NPTF M)

1шт.

12

H542910

LOCK VALVE

RELIEF VALVE ASSEMBLY - (See Figure 18)

1шт.

13

H323881

HYDRAULIC HOSE,9.52 mm ID x 2032.00 mm, SAE 100R1

(3/4 JIC Fe Sw Ends) 9.52 mm ID x 2032.00 mm, SAE 100R1

1шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree (3/4 JIC M x 3/4 JIC Fe Sw)

1шт.

15

218-594

TEE,3/4"-16, 37 Degree

- (3/4 JIC M)

1шт.
