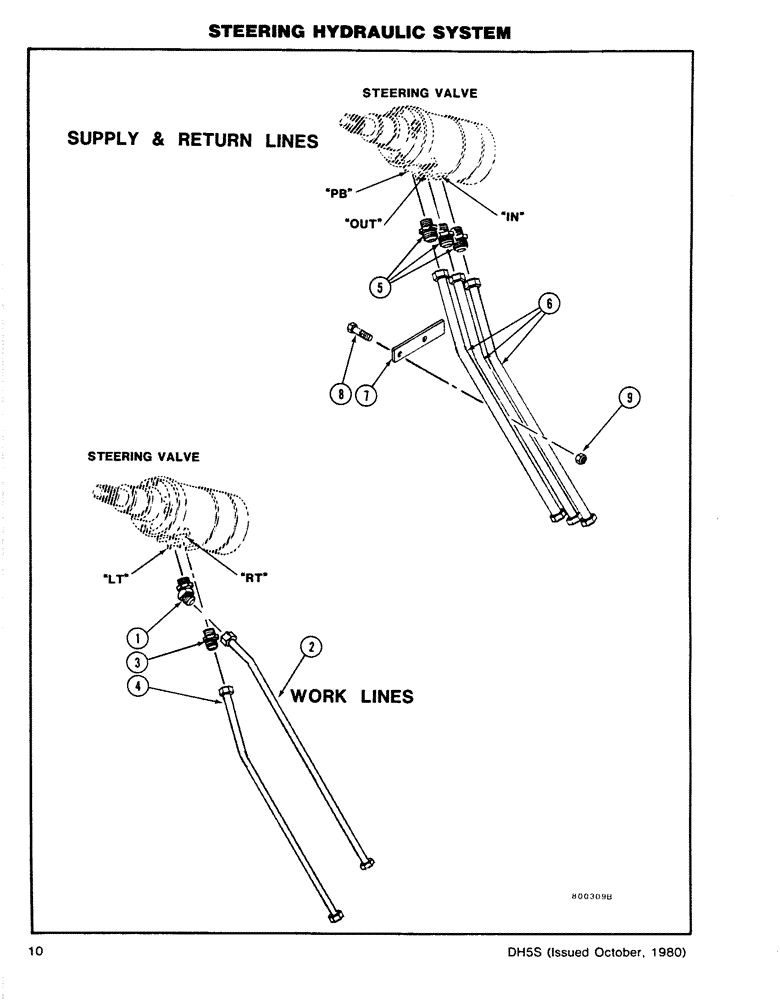

Запчасти Case DH5 (10) - STEERING HYDRAULIC SYSTEM (41) - STEERING

1

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 deg. (9/16 ORB x 9/16 JIC M)

1шт.

2

H656058

TUBE ASSY.,9.5 mm OD

TUBE - Steer Left

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

1шт.

4

H656066

TUBE ASSY.,9.5 mm OD

TUBE - Steer Right

1шт.

5

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - (9/16 ORB x 3/4 JIC M)

3шт.

6

H656033

TUBE ASSY.,12.7 mm OD

TUBE - PB., Out, In

3шт.

7

H406272

COLLAR CLAMP

STRAP - Tube Tiedown

1шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex (5/16 - lock)

2шт.
