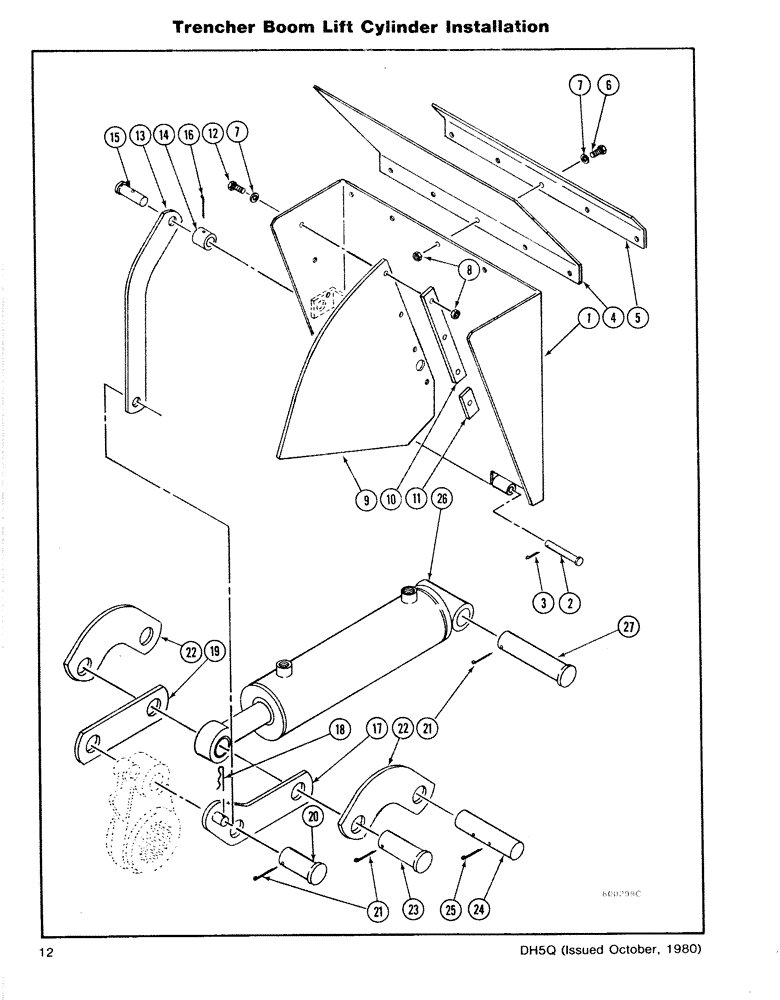

Запчасти Case DH5 (12) - TRENCHER BOOM LIFT CYLINDER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H621599

DEFLECTOR

- Dirt

1шт.

2

H126102

AXLE PIN

PIN - Clevis (3/8 x 2 7/8)

2шт.

3

132-340

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

4

H328344

FLAP

- Dirt

1шт.

5

H328336

STRAP

PLATE - Dirt Flap

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

7

195-521

WASHER,5/16", SAE

- Flat (5/16)

9шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

5шт.

9

H356873

FLAP

- Deflector

1шт.

10

H356865

BAR

- Flat - Long

1шт.

11

H356857

BAR

- Flap - Short

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

H381608

SPACER

LINK

1шт.

14

H381616

SPACER - Link

1шт.

15

H333294

PIN

- Clevis - Special

1шт.

16

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

17

H644294

LINK

1шт.

18

A20250

PIN - Hair

1шт.

19

H114116

DRAG LINK

LINK - Straight

1шт.

20

H114959

AXLE PIN

PIN - Clevis (1 1/4 x 3 1/16)

1шт.

21

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

3шт.

22

H114108

DRAG LINK

LINK - Curved

2шт.

23

H114975

AXLE PIN

PIN - Clevis (1 1/4 x 3 3/4)

1шт.

24

H150144

AXLE PIN

PIN - Headless

1шт.

25

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

26

H643015

BOOM CYLINDER ASSEMBLY - (See figure 34)

1шт.

27

H114983

AXLE PIN,31.72mm OD x 163.51mm L

PIN - Clevis (1 1/4 x 6 1/4)

1шт.
