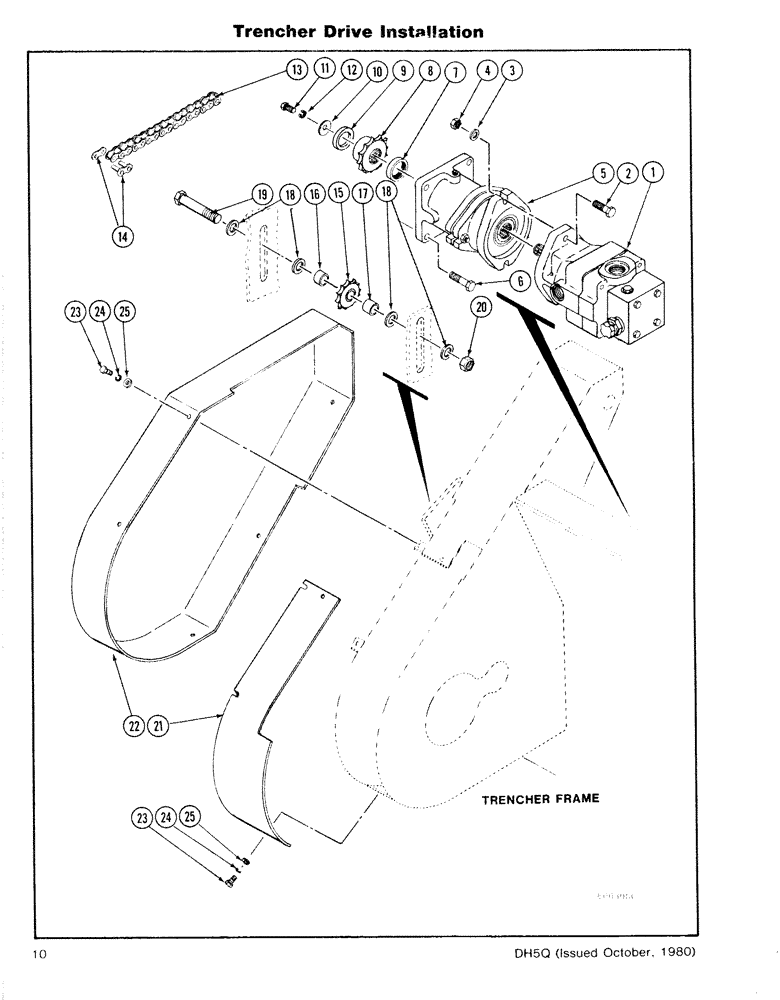

Запчасти Case DH5 (10) - TRENCHER DRIVE INSTALLATION (89) - TOOLS

1

H636472

MOTOR HOUSING

TRENCHER MOTOR ASSEMBLY - (See figure 32)

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

H274894

WASHER

- Heat Treated (1/2)

2шт.

4

131-182

LOCK NUT,7/16"-20, GC

NUT - NC Hex (1/2)

2шт.

5

D78121

GEAR

TRENCHER DRIVE GEARBOX ASSEMBLY - (See figure 26)

1шт.

6

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

7

H348581

SPACER

1шт.

8

H331272

DRIVE SPROCKET

SPROCKET - Drive

1шт.

9

H333260

SPACER

1шт.

10

H333278

WASHER

- Special

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

H757864

CHAIN (AG)

CHAIN - ASA #80 (68 Pitches), Includes: Ref. 14

1шт.

14

60961

DRAG LINK

LINK - CONNECTOR ASA #80

1шт.

15

H747436

DRIVE SPROCKET

SPROCKET - Idler

1шт.

16

H348599

SPACER

- Idler (0.62 Long)

1шт.

17

H368274

SPACER

- Idler (0.77 Long)

1шт.

18

195-545

WASHER,3/4", SAE

- Flat (3/4)

4шт.

19

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

20

131-1131

LOCK NUT,3/4"-10, GA

NUT - NC Hex (3/4)

1шт.

21

H621623

COVER

1шт.

22

H328187

COVER

- Chain

1шт.

23

113-303

BOLT - NC HH (5/16 x 1)

10шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

25

195-421

WASHER - Flat (5/16)

10шт.
