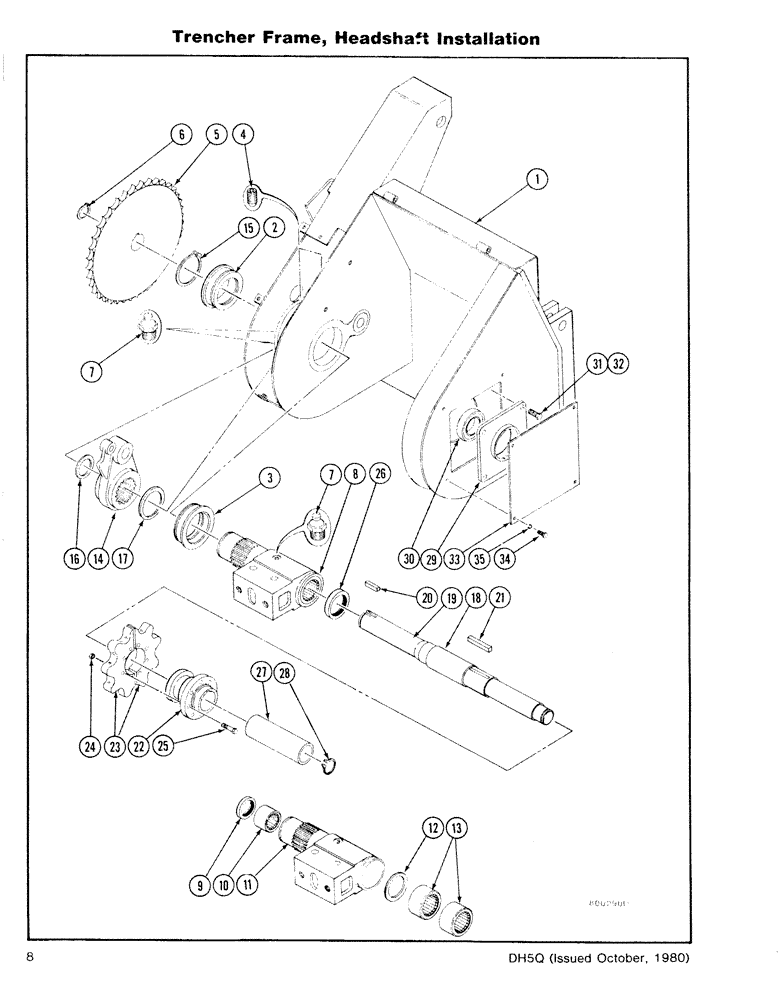

Запчасти Case DH5 (0-8) - TRENCHER FRAME, HEADSHAFT INSTALLATION (89) - TOOLS
№
Артикул
Название
Примечание
Количество
1
H648873
FRAME - Trencher, Includes: Ref. 2 and 3
1шт.
3
H150193
BUSHING
1шт.
4
H745976
SET SCREW
SCREW - Set NC Cup Point (1/4 x 1/2)
2шт.
5
H216846
DRIVE SPROCKET
SPROCKET - Drive
1шт.
6
D23191
SNAP RING,#200, Ext
Ring, Snap, #200, Ext
1шт.
7
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
2шт.
8
H569079
MOUNTING PARTS
CASTING ASSEMBLY - Boom Mounting, Includes: Ref. 9 - 13
1шт.
9
H754804
OIL SEAL
SEAL - Grease
1шт.
10
H748111
NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W
BEARING
1шт.
11
H216812
BOOM
CASTING - Boom Mounting
1шт.
12
H216887
WASHER
- Thrust
1шт.
13
H748145
BEARING
2шт.
14
H150276
BOOM
CRANK - Boom, Includes: Ref. 15
1шт.
15
F11296
SNAP RING,#300, Ext
Ring, Snap, #300, Ext
1шт.
16
A42844
WASHER,50.85mm ID x 69.6mm OD x 3.2mm Thk
- Thrust
1шт.
17
H150375
WASHER
- Thrust
1шт.
H643114
HEADSHAFT ASSEMBLY, Includes: Ref. 18 and 19
1шт.
18
H216820
SLEEVE CYLINDER
SLEEVE - Bearing
1шт.
19
NSS
NOT SOLD SEPARAT
HEADSHAFT
1шт.
20
H219287
KEY
- Square (1/2 x 1 3/4)
1шт.
21
H115816
KEY
- Square (1/2 x 3 1/4)
1шт.
22
H216739
HUB CAP
HUB - Sprocket
1шт.
23
H331272
DRIVE SPROCKET
SPROCKET - Split
1шт.
24
131-1133
NUT,3/8"-24, GC
NUT - NF Hex C/L (3/8)
8шт.
25
113-255
BOLT,Hex, 3/8" - 16 x 7", Gr 5
- NF HH (3/8 x 2 1/4)
8шт.
26
H754812
SEAL
SEAL - Grease
1шт.
27
H384115
SPACER
1шт.
28
A7147
SNAP RING,#177, Ext
Ring, Snap, #177, Ext
1шт.
29
H114157
CYLINDER END CAP
BLOCK - Bearing
1шт.
30
H747410
BEARING,45 mm ID x 85 mm OD x 30 mm
1шт.
31
114-400
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
4шт.
32
131-168
LOCK NUT,1/2"-20, GA
NUT - NF Hex C/L (1/2)
4шт.
33
H383968
COVER
1шт.
34
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
4шт.
35
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
Выбрано товаров: 36
