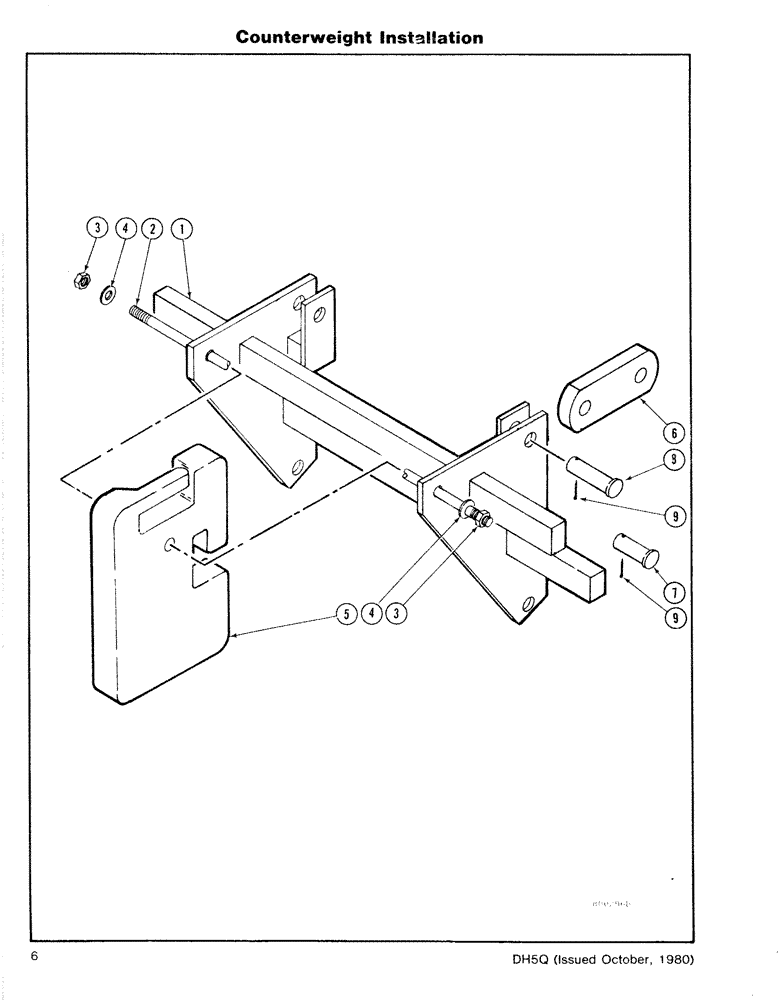

Запчасти Case DH5 (0-6) - COUNTERWEIGHT INSTALLATION (39) - FRAMES AND BALLASTING

1

H632901

BRACKET

- Counterweight

1шт.

2

H352815

ROD

- Draw

1шт.

3

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

4

195-541

WASHER,5/8", SAE

- Flat (5/8)

2шт.

5

H182386

BALANCER

WEIGHT - Counter

9шт.

6

H346098

LINK

- Top

2шт.

7

H143974

CLEVIS COUPLING

PIN - Clevis (1 x 2 7/8)

4шт.

8

H070623

PIN - Clevis (1 x 3 1/2)

2шт.

9

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

6шт.
