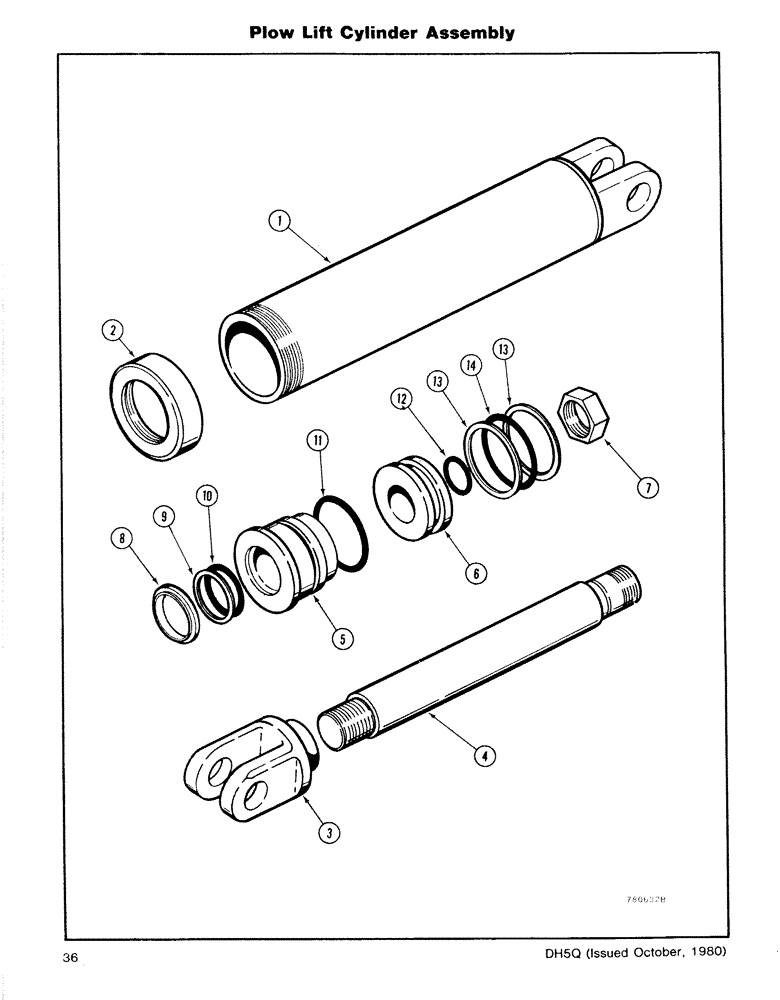

Запчасти Case DH5 (36) - PLOW LIFT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H565655

CYLINDER BLOCK

CYLINDER ASSEMBLY - Plow Lift, Includes: Ref. 1 - 14

2шт.

1

H571091

TUBE ASSY.

BARREL

1шт.

2

H223032

COLLAR CLAMP

COLLAR - Gland

1шт.

H636308

ROD

ASSEMBLY - Piston, Includes: Ref. 3 and 4

1шт.

3

H223065

CLEVIS COUPLING

CLEVIS - Rod

1шт.

4

H233107

ROD - Piston

1шт.

5

H223081

GLAND

1шт.

6

H223073

PISTON ASSY.

PISTON

1шт.

7

131-370

LOCK NUT

NUT - Lock

1шт.

H571075

KIT

- Seal Repair, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

9

NSS

NOT SOLD SEPARAT

RING - Backup, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - Gland Static

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - Rod Static

1шт.

13

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - Piston

1шт.
