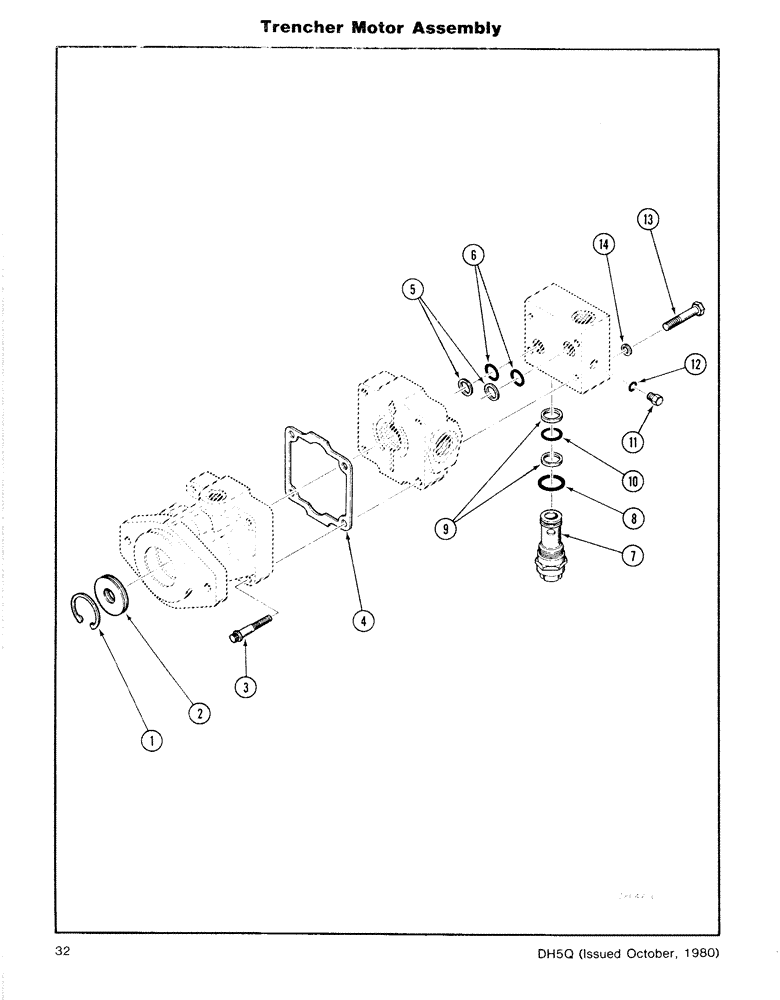

Запчасти Case DH5 (32) - TRENCHER MOTOR ASSEMBLY (35) - HYDRAULIC SYSTEMS

H636472

MOTOR HOUSING

MOTOR ASSEMBLY - Trencher, Includes: Ref. 1 - 14

1шт.

1

H757898

RING

- Retaining

1шт.

2

H756296

SEAL

- Shaft

1шт.

3

61-740

HEX SOC SCREW,7/16"-14 x 2 1/2"

SCREW - Socket Head

4шт.

4

H354076

GASKET

1шт.

5

S62373

OIL SEAL

RING - Backup

2шт.

6

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

7

H643783

VALVE

- High Pressure Relief

2шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

2шт.

9

A16860

RING

- Backup

4шт.

10

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2шт.

11

9672438

PLUG,7/16" - 20 ORB

2шт.

12

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

2шт.

13

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

4шт.

14

195-521

WASHER,5/16", SAE

- Flat

4шт.
