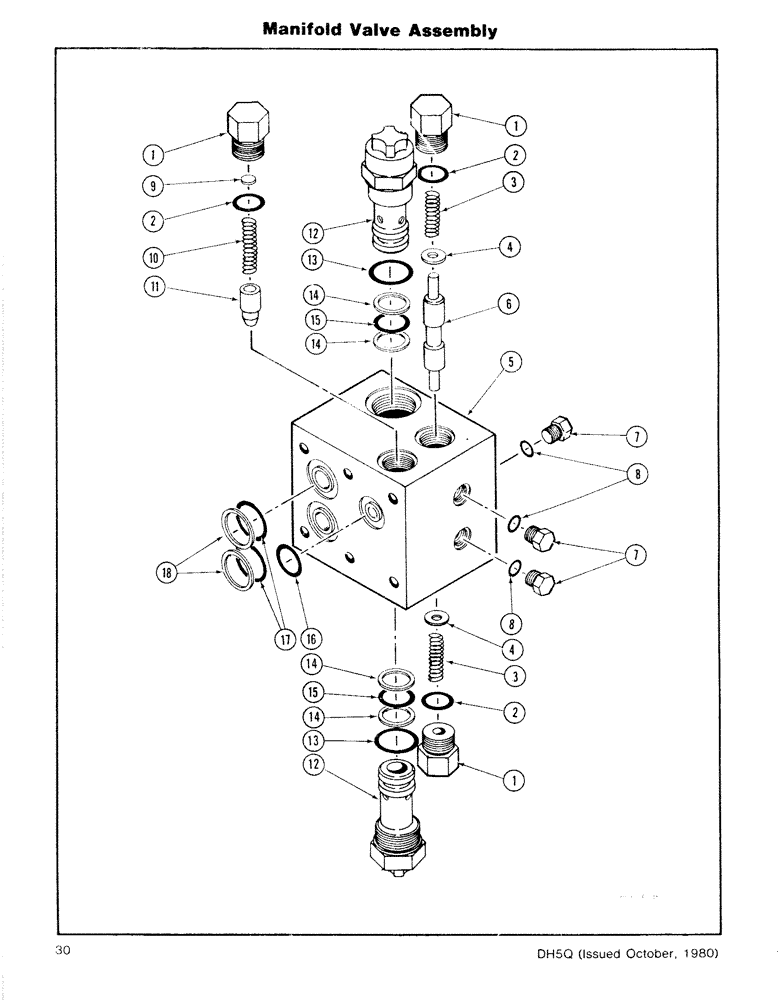

Запчасти Case DH5 (30) - MANIFOLD VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

H637512

MANIFOLD VALVE ASSEMBLY, Includes: Ref. 1 - 15

1шт.

1

H407726

PLUG

- Hex

3шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3шт.

3

H407734

SPRING

- Shuttle Valve

2шт.

4

H407742

WASHER

2шт.

H407759

HOUSING

SHUTTLE ASSEMBLY, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

6

NSS

NOT SOLD SEPARAT

SHUTTLE

1шт.

S97899

PLUG

ASSEMBLY, Includes: Ref. 7 and 8

3шт.

7

NSS

NOT SOLD SEPARAT

PLUG

1шт.

8

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

9

H407767

KIT

SHIM

1шт.

10

H407775

SPRING

- Charge Relief

1шт.

11

H407783

PISTON

VALVE - Charge Relief

1шт.

H637140

LOCK VALVE

RELIEF VALVE ASSEMBLY - (4500 psi), Includes: Ref. 12 - 15

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - Relief Valve

1шт.

R29539

SEAL ASSY.

KIT - Relief Valve O-ring, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - Backup

2шт.

15

NSS

NOT SOLD SEPARAT

O-RING

1шт.

H569483

SEAL ASSY.

KIT - Seal Repair, Includes: Ref. 16 -18

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

2шт.

18

NSS

NOT SOLD SEPARAT

WASHER - Backup

2шт.
