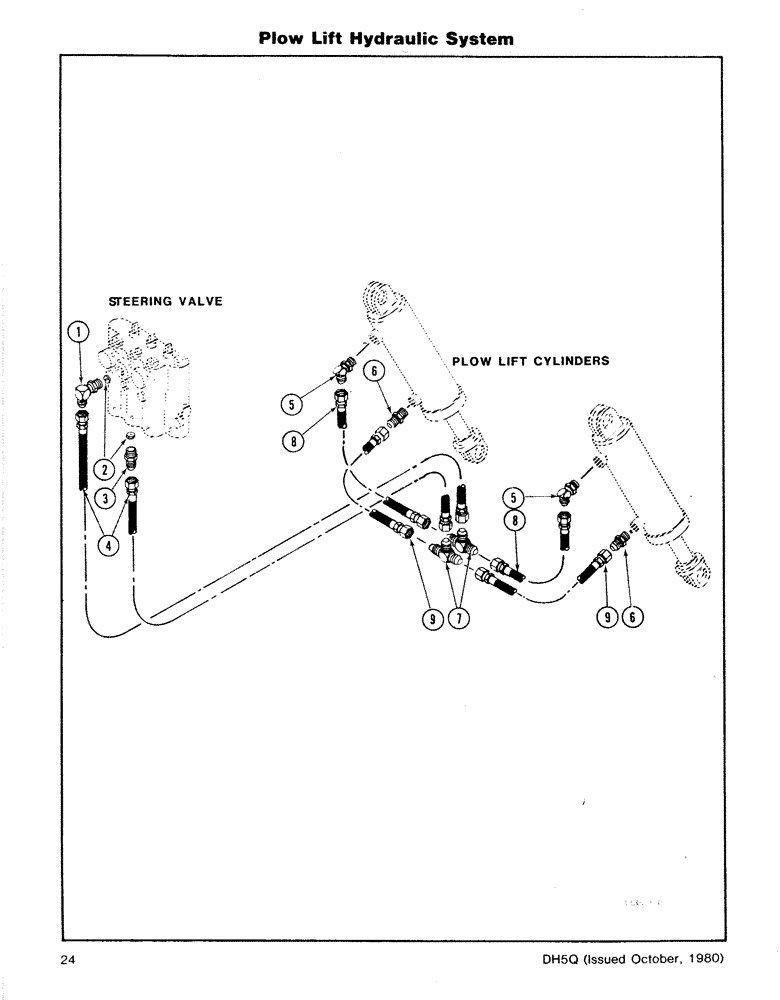

Запчасти Case DH5 (24) - PLOW LIFT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 ORB x 9/16 JIC M)

1шт.

2

H165654

ORIFICE

PLATE - Orifice (0.055)

2шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

1шт.

4

H246322

HYDRAULIC HOSE,6.35 mm ID x 1524.00 mm, SAE 100R1

6.35 mm ID x 1524.00 mm, SAE 100R1

2шт.

5

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 45 degrees (3/4 ORB x 9/16 JIC M)

2шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - (3/4 ORB x 9/16 JIC M)

2шт.

7

218-593

TEE,9/16"-18, 37 Degree

- (9/16 JIC M)

2шт.

8

D81836

HOSE

- 1/4 x 12 (9/16 JIC Fe Swv Ends)

2шт.

9

H171629

HYDRAULIC HOSE,304.80 mm, SAE 100R1

304.80 mm, SAE 100R1

2шт.
