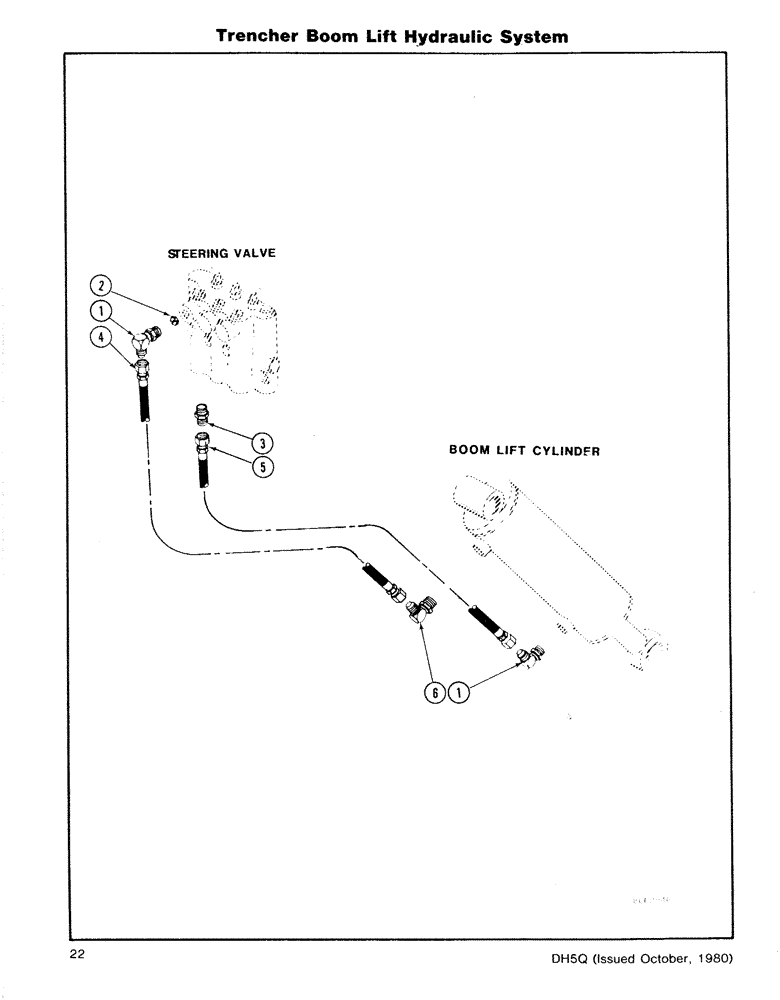

Запчасти Case DH5 (22) - TRENCHER BOOM LIFT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 ORB x 9/16 JIC M)

2шт.

2

H165654

ORIFICE

PLATE - Orifice (0.055)

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

1шт.

4

H234724

HOSE

- 1/4 x 72 (9/16 JIC Fe Swv Ends)

1шт.

5

H243790

HYDRAULIC HOSE,6.35 mm ID x 1473.20 mm, SAE 100R1

6.35 mm ID x 1473.20 mm, SAE 100R1

1шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (3/4 ORB x 9/16 JIC M)

1шт.
