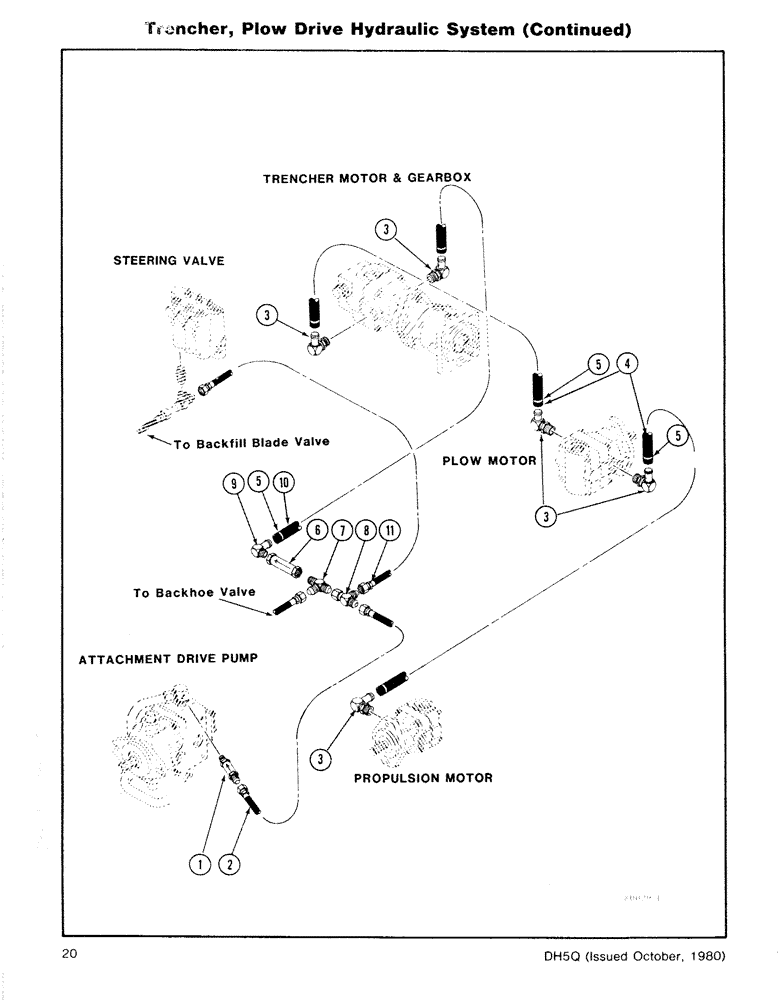

Запчасти Case DH5 (20) - TRENCHER, PLOW DRIVE HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

H643528

VALVE, CHECK

VALVE - Check (6 psi)

1шт.

2

H394932

HOSE

- 1/2 x 2250 mm (7/8 JIC Fe Swv x 3/4 JIC Fe Swv)

1шт.

3

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90deg. (1 1/16 ORB x 3/4 Hose)

5шт.

4

H337915

HOSE ASSY.

HOSE - (3/4 x 103)

2шт.

5

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

6шт.

6

H637132

VALVE

- Check (180 psi)

1шт.

7

218-1128

TEE,7/8"-14, 37 Degree x 3/4"-14, NPTF Run

- (3/4 MP x 7/8 JIC M x 7/8 JIC M)

1шт.

8

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- (7/8 JIC Fe Swv x 7/8 JIC M x 7/8 JIC M)

1шт.

9

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90deg. (3/4 MP x 3/4 Hose)

1шт.

10

H353516

HOSE

- (3/4 x 96)

1шт.

11

H171009

HYDRAULIC HOSE,7.62 mm ID x 838.00 mm, SAE 100R1

7.62 mm ID x 838.00 mm, SAE 100R1

1шт.
