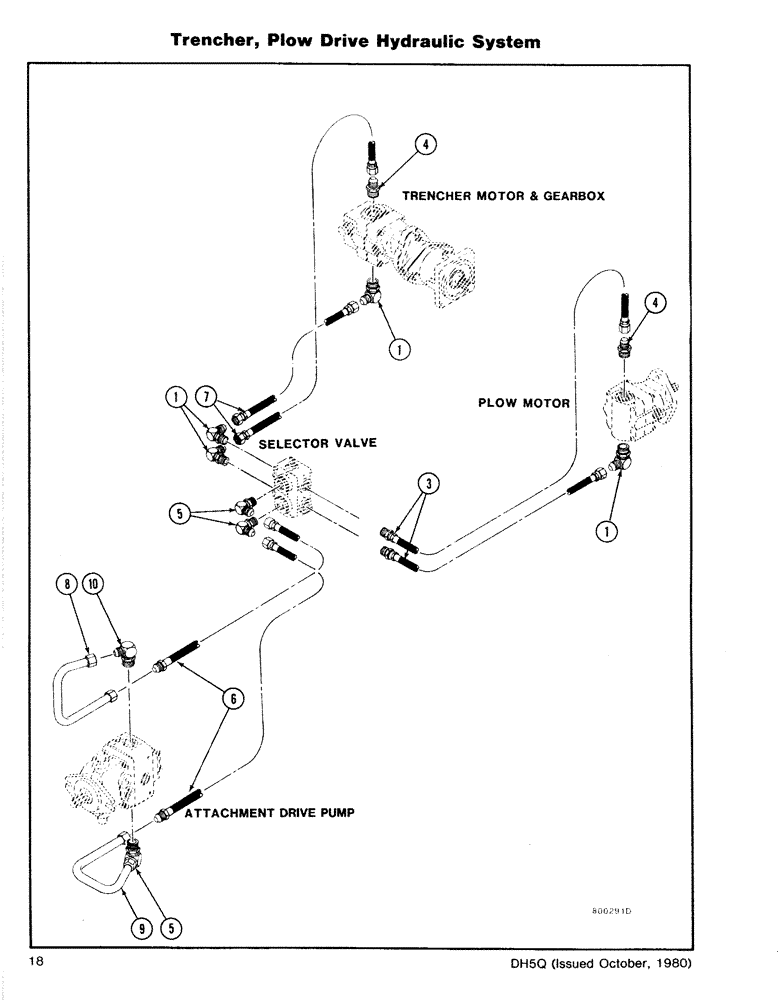

Запчасти Case DH5 (18) - TRENCHER, PLOW DRIVE HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º (1 1/16 ORB x 1 1/16 JIC M)

4шт.

3

H406827

HOSE - 3/4 x 2336 (1 1/16 JIC Fe Swv)

2шт.

4

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1 5/16 ORB x 1 1/16 JIC M)

2шт.

5

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

3шт.

6

H259267

HOSE,0.75" ID x 67.00", SAE 100R1A

2шт.

7

H281543

HOSE,19.05 mm ID x 1270.00 mm, SAE 100R9

- (1 1/16 JIC Fe Swv Ends) 19.05 mm ID x 1270.00 mm, SAE 100R9

2шт.

8

H626218

TUBE,0.75" OD

1шт.

9

H626333

TUBE,0.75" OD

1шт.

10

H364489

ELBOW

- 90 degrees Special

1шт.
