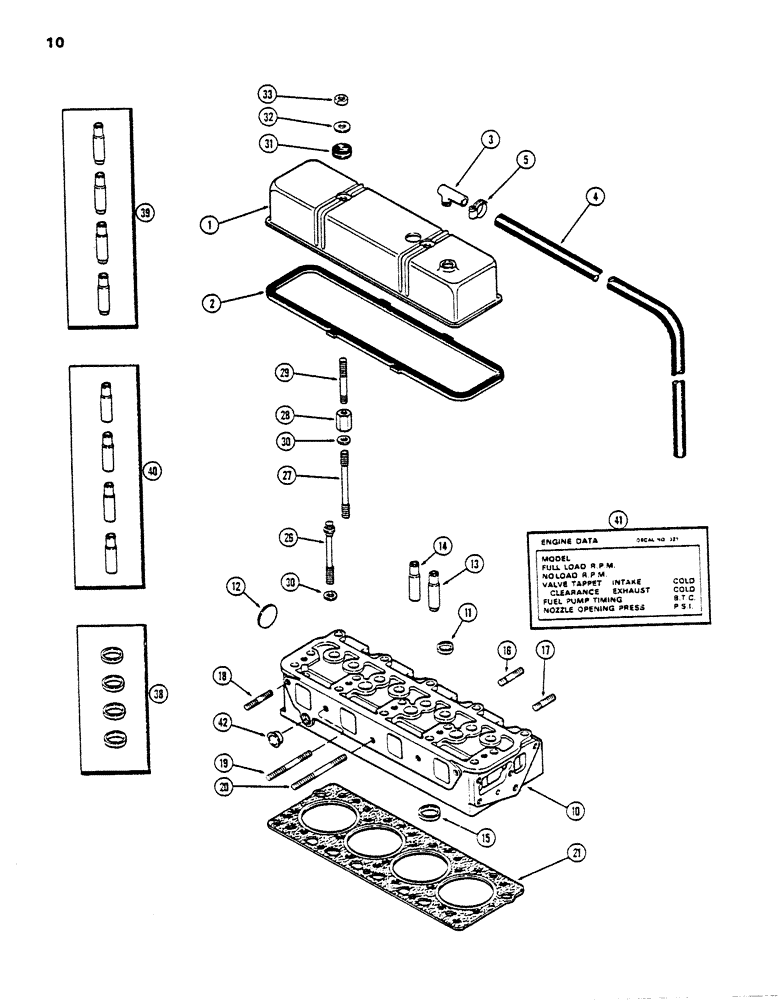

Запчасти Case DH5 (10) - CYLINDER HEAD AND COVER (10) - ENGINE

1

A38615

COVER - cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

-, Serial Range: cover-head

1шт.

3

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

4

A39570

HOSE

HOSE - breather tube (Rubber)

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose to elbow (9/16" to 1 1/16")

1шт.

10

A150385

HEAD

ASSY. - cylinder (Casting No. A1503840)

1шт.

11

41-1016

PLUG,Cup, 1"

- top (1" cup type)

3шт.

12

41-1028

PLUG,Cup, 1 3/4"

- rear (1 - 3/4" cup type)

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order Ref.39)(3 - 1/8" long)

4шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order Ref.40)(3 - 1/4" long)

4шт.

15

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref.38)

4шт.

16

A39129

STUD

- exhaust manifold, clamps (3/8" N. C. X 2 1/16")

3шт.

17

A29431

STUD

- exhaust manifold, ends (3/8" N. C. x 1 - 3/4")

2шт.

18

A140924

STUD

- intake manifold, ends (3/8" N. C. x 2 - 7/16")

2шт.

19

A51499

STUD

- intake manifold, inter. (3/8" N. C. x 4 - 5/16")

2шт.

20

A51500

STUD

- intake manifold, center (3/8" N. C. x 5 - 5/16")

1шт.

21

A148745

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

1шт.

26

A39047

12 PT SCREW

BOLT - head to block (1/2 x 3 - 1/2" N.C. 12 pt. hd.)

4шт.

26

A39048

12 PT SCREW

BOLT - head to block (1/2 X 5 - 1/8" N.C. 12 pt. hd.)

11шт.

26

A39049

12 PT SCREW

BOLT - head to block (1/2 x 5 - 5/8" N.C. 12 pt. hd.)

2шт.

27

A36902

STUD

- cyl. head (1/2" N.C. X 5 - 5/8")

2шт.

28

A51114

NUT

- head studs (1/2" N.C. & 3/8" N.C.)

2шт.

29

A51271

STUD

- cyl. head cover (3/8" N.C. x 3 - 3/4")

2шт.

30

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8"

19шт.

31

A142098

GROMMET

- cover (Rubber)

2шт.

32

G49400

WASHER

- cover nut (3/8 x 1 - 1/8 x 1/8")

2шт.

33

25-106

NUT,3/8"-16, G5

- cover (3/8" N.C. hex)

2шт.

38

A43048

KIT

INSERT KIT - exhaust valve seat (Set of 4)

1шт.

39

G11946

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

40

G11945

GUIDE

KIT - intake valve (Set of 4)

1шт.

41

321-2940

DECAL

- engine data (on cover)

1шт.

42

353-14

PLUG,Cap, .787" OD

CAPLUG - temp. sending unit hole (#2 polyethylene)

1шт.
