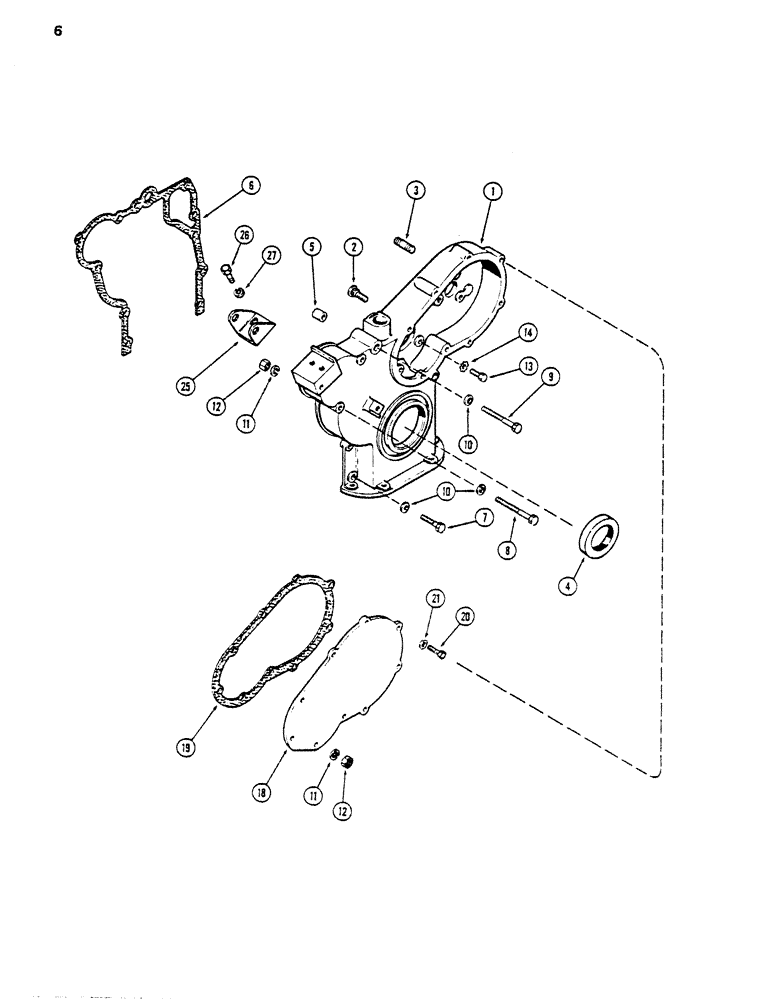

Запчасти Case DH5 (06) - TIMING GEAR COVER (10) - ENGINE

1

A51981

COVER

ASSY. - timing gears

1шт.

2

A51649

STUD

- cover

2шт.

3

G11204

STUD

- injection pump (3/8" N.C. x 1 - 7/16")

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (2 x 3 x 1/2")

1шт.

5

A29442

RING

DOWEL - cover locating (9/16 X 3/8 X 5/8")

2шт.

6

A51529

GASKET

-, Serial Range: cover-block

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1 - 1/2" N. C. hex)

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- cover (3/8 x 2 - 3/4" N. C. hex)

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- cover (3/8 X 3" N. C. hex)

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- cover (3/8 x 3 1/4" N. C. hex)

3шт.

10

A50820

WASHER

- 3/8 X 3/4 X 1/8"

9шт.

10

95-6

WASHER,3/8"

- 3/8 x 1 x 1/16"

1шт.

10

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16"

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex

3шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

18

A51908

COVER

PLATE - timing gear cover

1шт.

19

A39925

GASKET

-, Serial Range: plate-cover

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover plate Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

21

A50820

WASHER

- 3/x x 3/4 x 1/8"

7шт.

25

A38492

BRACKET

- alternator mounting

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Mtg. bracket to cover Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.
