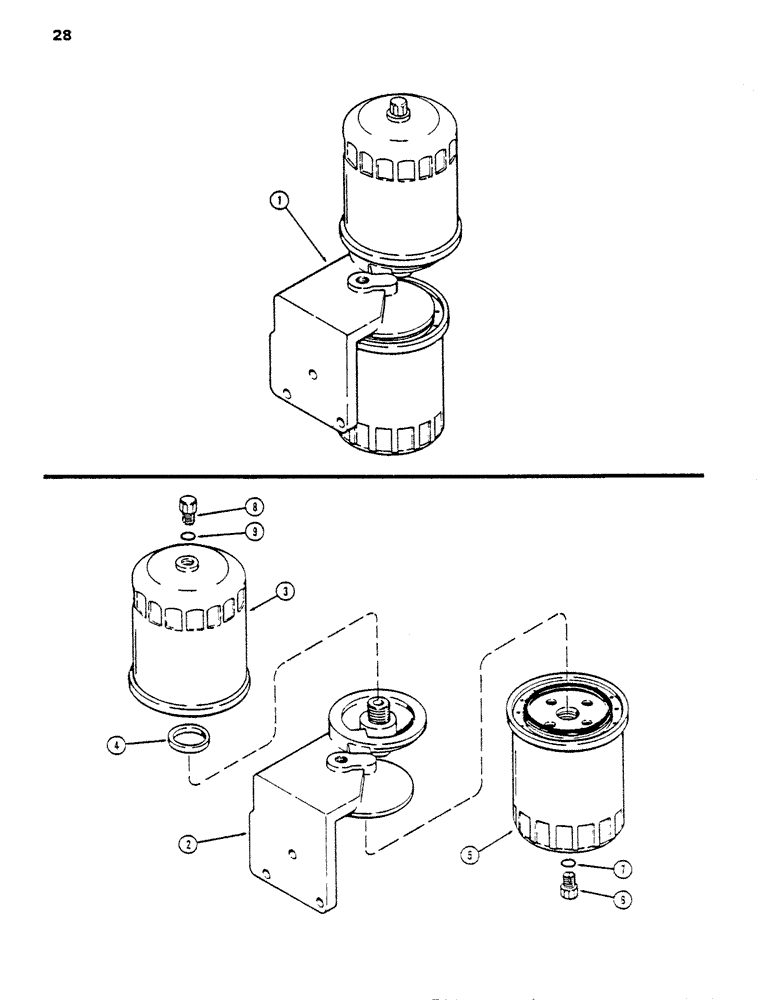

Запчасти Case DH5 (28) - FUEL FILTER (10) - ENGINE

1

A51739

FILTER

ASSY. - fuel

1шт.

2

A51738

CYLINDER HEAD

HEAD - filter base

1шт.

3

A39867

FUEL FILTER

ASSY. - secondary (15/16" threads)

1шт.

4

A42315

GASKET

- filter to head (15/16 x 1 - 1/4 x 1/4")

1шт.

5

A39868

FUEL FILTER

ASSY. - primary (13/16" threads)

1шт.

6

G49080

PLUG

- drain, primary filter 93/8" N.F., 12 pt. hd., nylon)

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy, Drain, Secondary filter Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.
