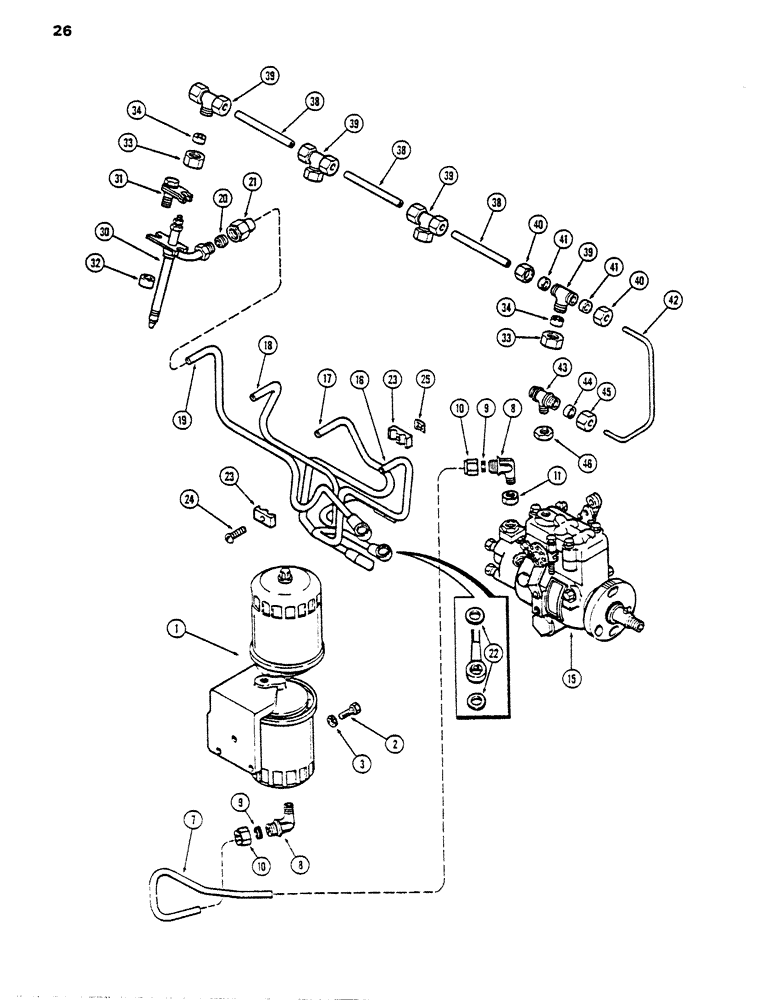

Запчасти Case DH5 (26) - FUEL INJECTION & FILTER SYSTEM (10) - ENGINE

1

REF

INSTRUCTION

FILTER ASSY. - fuel (See figure 28)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter mounting Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

7

A51784

TUBE

LINE -, Serial Range: filter-pump

1шт.

8

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. -

2шт.

9

222-104

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

10

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

1шт.

11

A38161

LOCK NUT

- sealing (1/4" P.T.)(at inj. pump)

1шт.

15

REF

INSTRUCTION

PUMP ASSY. - injection (See figure 30)

1шт.

16

A41391

TUBE

ASSY. - inj. pump to No. 1 cylinder (Incl. items 20, 21, & 22)

1шт.

17

A41392

TUBE

ASSY. - inj. pump to No. 2 cylinder (Incl. items 20, 21, & 22)

1шт.

18

A41393

TUBE

ASSY. - inj. pump to No. 3 cylinder (Incl. items 20, 21, & 22)

1шт.

19

A41394

TUBE

ASSY. - inj. pump to No. 4 cylinder (Incl. items 20, 21, & 22)

1шт.

Ref 19 A41394 not illustrated properly the part pictured is a35061 see 310G crawler figure 40 for illustration of all tubes if customer requires tube which looks like picture DB 12/1/9

1шт.

20

A37850

PIPE FITTING

SLEEVE - injection tube

1шт.

21

A37851

NUT

- injection tube

1шт.

22

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

2шт.

23

A58709

BRACKET

CLAMP - fuel injection lines

4шт.

24

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp (#10 x 1" rd. hd.)

2шт.

25

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 Tinnerman

2шт.

30

REF

INSTRUCTION

NOZZLE ASSY. - injector (See figure 32)

4шт.

31

A37837

CLAMP

ASSY. - injector nozzle

4шт.

32

A37839

SPACER

- nozzle clamp

4шт.

33

A58961

NUT

- tee to injector nozzle

4шт.

34

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: nut-tee

4шт.

38

A38644

TUBE

- fuel leak-off

3шт.

39

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle & leak-off lines junction

4шт.

40

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

8шт.

41

222-102

SLEEVE,1/4" Tube

8шт.

42

A142906

TUBE

- fuel leak-off (at pump)

1шт.

43

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - fuel leak-off line (at pump)

1шт.

44

222-102

SLEEVE,1/4" Tube

2шт.

45

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

2шт.

46

A38160

LOCK NUT

- sealing (1/8" P.T.)(at pump)

1шт.
