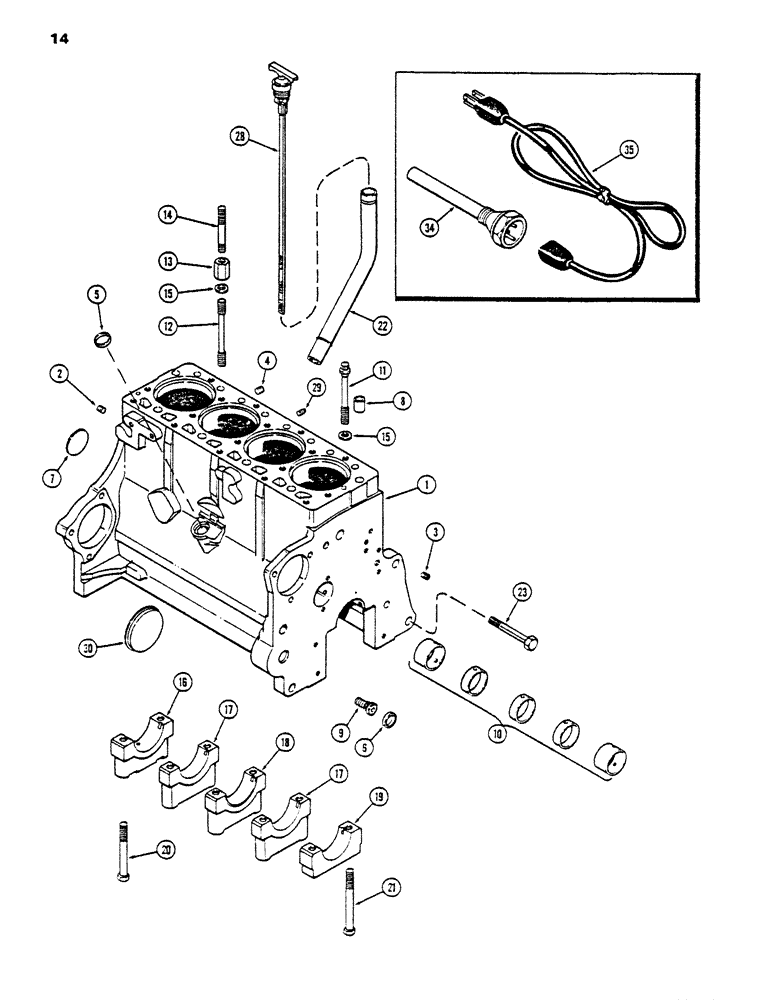

Запчасти Case DH5 (14) - CYLINDER BLOCK (10) - ENGINE

A143577

SPARE PART

ENGINE ASSY. - (For Davis Task Force 1000 Super) and (Davis Fleet Line 70+4)

1шт.

A46011

SKELETON ENGINE

BLOCK ASSY. - short (Incl. stripped block, piston assy., conn. rods & brgs., camshaft, crankshaft & brgs., oil pump & timing gears)

1шт.

1

A44702

BLOCK

ASSY. - stripped (Casting No. A136813)

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Rear oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

3

G49070

PLUG

- oil gallery, front (1/4" P.T., drilled)

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - 3/8" P.T., sckt. hd

1шт.

5

A38534

PLUG

- tach. drive hole ( 1 - 1/16" cup type)

1шт.

6

41-1016

PLUG,Cup, 1"

- adapter hole (1" cup type)

1шт.

7

A39241

PLUG,Exp, 2.12" dia

- camshaft hole (2 - 1/8" expansion)

1шт.

8

G49608

RING

- dowel, head locating

2шт.

9

A153552

ADAPTER

- oil filter

1шт.

10

A42746

CAM

BUSHING SET - camshaft

1шт.

11

A39047

12 PT SCREW

BOLT - cyl. head (1/2 x 3 - 1/2" N.C., 12 pt. hd)

4шт.

11

A39048

12 PT SCREW

BOLT - cyl. head (1/2 x 5 - 1/8" N.C., 12 pt. hd)

11шт.

11

A39049

12 PT SCREW

BOLT - cyl. head (1/2 x 5 - 5/8" N.C., 12 pt. hd)

2шт.

12

A36902

STUD

- cyl. head (1/2" N.C. x 5 - 5/8")

2шт.

13

A51114

NUT

- cyl. head studs (1/2" N.C. & 3/8" N.C.)

2шт.

14

A51271

STUD

- cyl. head cover (3/8" N.C. x 3 - 3/4")

2шт.

15

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8"

19шт.

16

A51057

CAP

- main bearing, rear

1шт.

17

A51055

CAP

- main bearing, intermediate

2шт.

18

A51056

CAP

- main bearing, center

1шт.

19

A51054

CAP

- main bearing, front

1шт.

20

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- bearing caps (1/2 x 4 - 1/2" N.C. hex)

8шт.

21

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- front bearing cap (1/2 x 5 - 1/8" N.C. hex)

2шт.

22

A140185

COUPLING

- oil filter & dipstick

1шт.

23

A38303

BOLT

BOLT - front support (5/8 x 3 - 3/16" N.C. hex)

1шт.

28

A136379

DIPSTICK

- oil level (Turn-tite type)

1шт.

29

221-662

PLUG,Hex Hd, 1/4"-18

- drain, cyl. block (1/4" P.T., sq. hd.)

1шт.

30

A29268

PLUG

COVER - auxiliary drive opening (3 - 1/2" cup type)

1шт.

34

A44815

HEATER

ASSY. -block

1шт.

35

A44814

ELECTRIC CABLE

CORD - heater (12" long), block

1шт.

for plug size for block heater see quality comments for part 182030 for usa and 182031 for canada

1шт.
