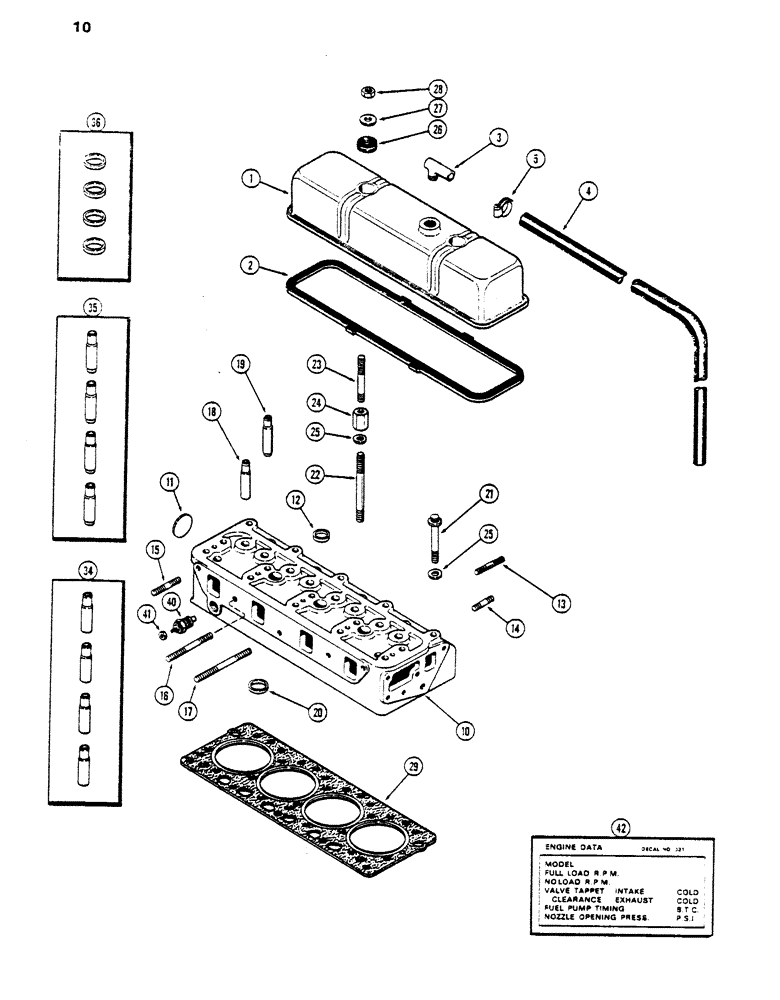

Запчасти Case DH5 (10) - CYLINDER HEAD AND COVER (10) - ENGINE

1

A36815

COVER

- cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

- cover

1шт.

3

A9155

90 ELBOW

- breather tube

1шт.

4

A39570

HOSE

- breather (Hose)

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - breather hose (9/16" to 1-1/16")

1шт.

10

A150385

HEAD

ASSY. - cylinder (Casting no. A150384)

1шт.

11

41-1028

PLUG,Cup, 1 3/4"

- rear (1-3/4" cup type)

1шт.

12

41-1016

PLUG,Cup, 1"

- top (1" cup type)

3шт.

13

A39129

STUD

- exhaust manifold clamps (3/8" N.C. x 2-1/16")

3шт.

14

A29431

STUD

- exhaust manifold ends (3/8" N.C. x 1-3/4")

2шт.

15

A140924

STUD

- intake manifold ends (3/8" N.C. x 2-7/16")

2шт.

16

A51499

STUD

- intake manifold inter. (3/8" N.C. x 4-5/16")

2шт.

17

A51500

STUD

- intake manifold center (3/8" N.C. x 5-5/16")

1шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (3-1/8" long)(Order Ref. 34)

4шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (3-1/4" long)(Order Ref. 35)

4шт.

20

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 36)

4шт.

21

A39047

12 PT SCREW

BOLT - cyl. head (1/2 x 3-1/2" N.C., 12 pt. hd.)

4шт.

21

A39048

12 PT SCREW

BOLT - cyl. head (1/2 x 5-1/8" N.C., 12 pt. hd.)

11шт.

21

A39049

12 PT SCREW

BOLT - cyl. head (1/2 x 5-5/8" N.C., 12 pt. hd.)

2шт.

22

A36902

STUD

- cyl. head, lower (1/2" N.C. x 5-5/8")

2шт.

23

A51271

STUD

- cyl. head cover (3/8" N.C. x 3-3/4")

2шт.

24

A51114

NUT

- head studs (1/2" N.C. & 3/8" N.C.)

2шт.

25

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8"

19шт.

26

A142098

GROMMET

- cover

2шт.

27

G49400

WASHER

- cover grommet

2шт.

28

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

29

A148745

CYLINDER HEAD GASKET

- cylinder head

1шт.

34

G11946

GUIDE

KIT - exhaust valves (Set of 4)

1шт.

35

G11945

GUIDE

KIT - intake valves (Set of 4)

1шт.

36

A43048

KIT

INSERT KIT - exhaust valve seat (Set of 4)

1шт.

40

A21462

SENDER UNIT

UNIT - sending, engine temperature

1шт.

41

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex.

1шт.

42

321-2559

DECAL

- engine data (On cyl. head cover)

1шт.
