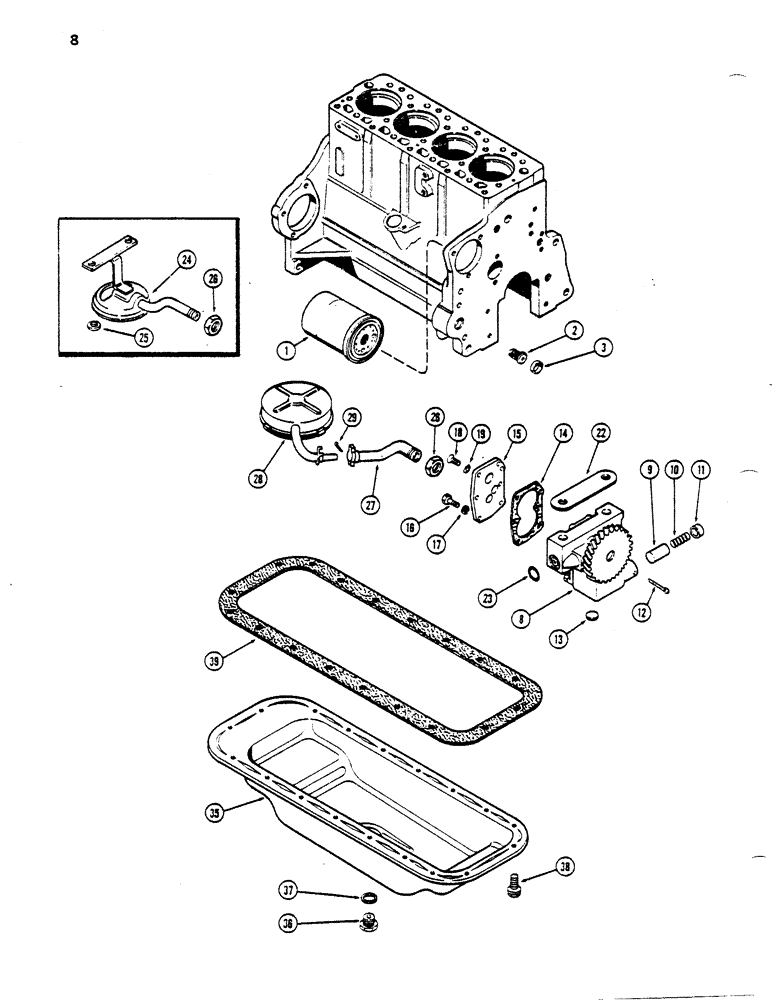

Запчасти Case DH5 (08) - OIL FILTER (10) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER - oil

1шт.

2

A153552

ADAPTER

ADAPTER - filter to block, oil

1шт.

3

41-1016

PLUG,Cup, 1"

PLUG - adapter cover (1" cup type), oil filter

1шт.

8

A38372

PUMP

PUMP ASSY. - oil pump

1шт.

8

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

8

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

9

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

10

G48500

SPRING

SPRING - relief valve, oil pump

1шт.

11

A29260

RETAINER

RETAINER - relief valve spring, oil pump

1шт.

12

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

13

A39321

PLUG,Cup, 7/16"

PLUG - pump body (1/2" cup type), oil pump

1шт.

14

G46852

GASKET

GASKET - pump cover, oil pump

1шт.

15

NSS

NOT SOLD SEPARAT

COVER - pump body, oil

1шт.

16

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, , Cover, oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Cover, Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

18

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW - cover (1/4 x 5/8" N.C. flat hd.), oil pump

2шт.

19

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

22

G11337

SHIM,.002" Thk

SHIM, , Pump to bearing cap .002" Thk

1шт.

22

G11338

SHIM,.005" Thk

SHIM, , Pump to bearing cap, Oil .005" Thk

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port (3/4 x 15/16 x 3/32"), pump

1шт.

24

NSS

NOT SOLD SEPARAT

SCREEN - oil pump (Production only) (Order 1-A39035 suction pipe, 1-223-207 nut, 1-A39036 float & 1-132-50 cotter pin)

1шт.

25

G49404

WASHER

WASHER - screen brkt. to brg. cap (1/2 x 7/8 x 1/16"), oil pump

2шт.

26

223-207

LOCK NUT

NUT - suction pipe to pump, oil

1шт.

27

A39035

TUBE

PIPE - suction, float to pump (Repair only), oil

1шт.

28

A39036

FLOAT

FLOAT ASSY. - oil suction (Repairs only), pump

1шт.

29

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

35

A36717

PAN

PAN ASSY. - oil

1шт.

36

A140222

PLUG

PLUG - drain, oil pan

1шт.

37

A58608

GASKET

GASKET - drain plug oil pan

1шт.

38

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (5/16 x 3/4" N.C. hex., sems)

18шт.

39

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712 from Fig. 24)

1шт.
