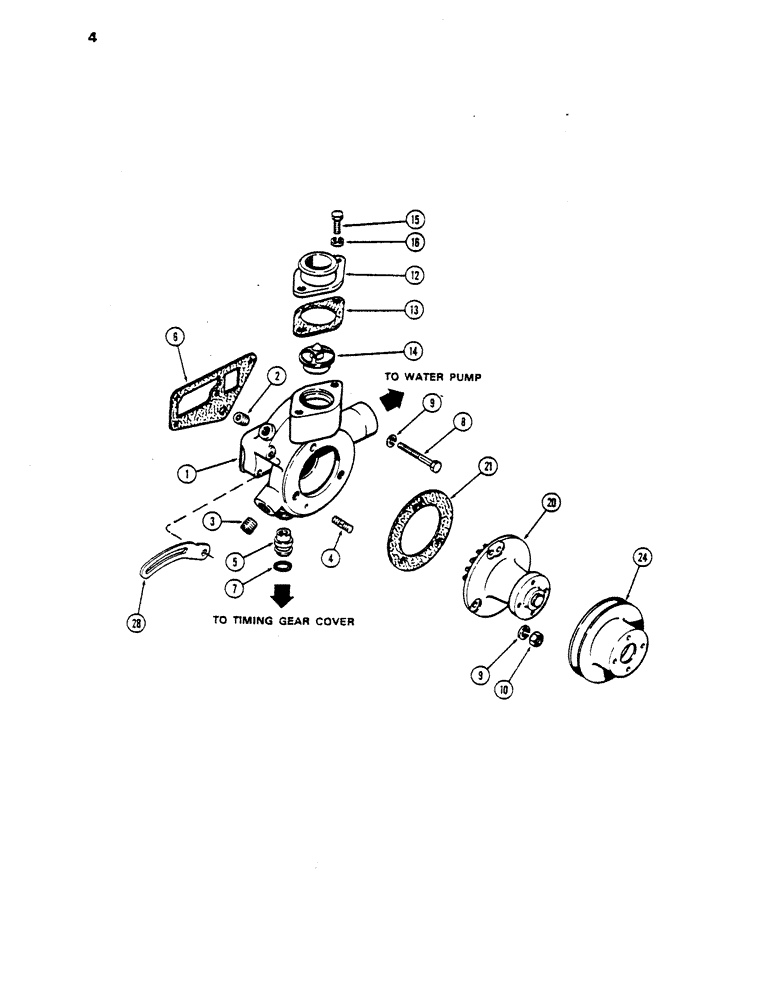

Запчасти Case DH5 (04) - WATER PUMP (10) - ENGINE

1

A144054

BODY

BODY ASSY. - water pump

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - body (3/8" P.T., sckt. hd.)

1шт.

3

221-844

PLUG,Hex Soc, 1/2"-14

PLUG - body (1/2" P.T., sckt. hd.)

1шт.

4

29433

STUD - water pump (3/8" N.C. x 1")

2шт.

5

142823

CLEVIS PIN

FITTING - inlet

1шт.

6

A38084

GASKET,1.27mm Thk

GASKET - body to cylinder head

1шт.

7

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - body fitting to cover (3/4 x 1 x 1/8")

1шт.

8

13-638

BOLT,Hex, 3/8" - 16 x 2-3/8", Gr 5

BOLT - 3/8 x 2-3/8" N.C. hex

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex

3шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

10

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

2шт.

12

G2144

FITTING

HOUSING - thermostat & water outlet

1шт.

13

G46907

GASKET

GASKET -, Serial Range: housing-body

1шт.

14

A57641

THERMOSTAT

THERMOSTAT - (180 degrees)

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Housing Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

20

A39074

PUMP

PUMP ASSY. - water

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

A38083

GASKET

GASKET -, Serial Range: pump-body

1шт.

24

11339

BALL BEARING

PULLEY - water pump

1шт.

28

A37017

STRAP

STRAP - alternator adjusting

1шт.
